1932/3-BK003 by alpha wire

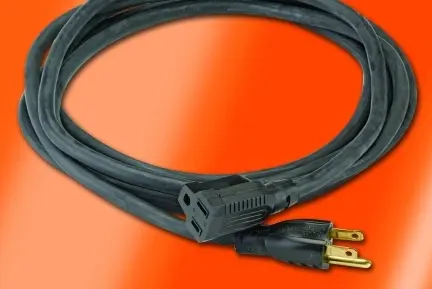

Image is representational - see manufacturer specifications
DATA SHEET

1932/3-BK003

Alpha Wire

Multi-Conductor Cable EPDM Rubber 3 Conductors 18AWG 8.5mm 300VAC Black - 76.2m (250ft)/Spool .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
1932/3-BK003
Alias/AKA:
1932/3-BLACK-250
RoHS:
Yes
HTS:
8544493080
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
4
Number of Conductors:
3
Conductor Material:
Bare Copper
Cable Length:
76.2 m
Maximum Current Rating:
N/A
Type:
Multi-Conductor Cable
The 1932/3-BK003 is a three-conductor stranded cable assembly designed for general-purpose electrical applications requiring flexible, durable wiring. It features 18 AWG (16/30) bare copper conductors with 0.032" nominal EPDM rubber insulation, paper tape separator, and a 0.034" nominal chlorinated polyethylene (CPE) jacket with tissue tape separator. The cable is rated for 300 V RMS at 90°C dry or 60°C wet conditions, with a temperature operating range of -40°C to +90°C, and meets UL SJOW and CSA C(UL) SJOW specifications. The three conductors are color-coded black, white, and green, twisted at 4.8 twists per foot minimum, with an overall diameter of 0.320 ± 0.015 inches. This cable is ideal for industrial control systems, appliances, and general-purpose wiring where flexibility and environmental resistance are required, offering excellent sunlight resistance and compliance with RoHS and REACH regulations.
Search Keywords:
19323BK003
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$846.52
$846.52
4
$834.93
$3,339.72
8 +
$812.66
$6,501.28
