6713-VI001

Name: 6713-VI001
Brand: Alpha Wire
SKU: 39133332
Price: 372.77 USD
Availability: InStock

Alpha Wire

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - Violet - 1000 ft - Tinned Copper .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6713-VI001

Alias/AKA:

6713-VIOLET-1000

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Size:

22 AWG

Bunch Stranding:

7x30

Conductor Material:

Tinned Copper

Cable Diameter:

1.24 mm

Maximum Voltage Rating:

600 V

Operating Temperature:

-40 to 105 °C

Color:

Violet

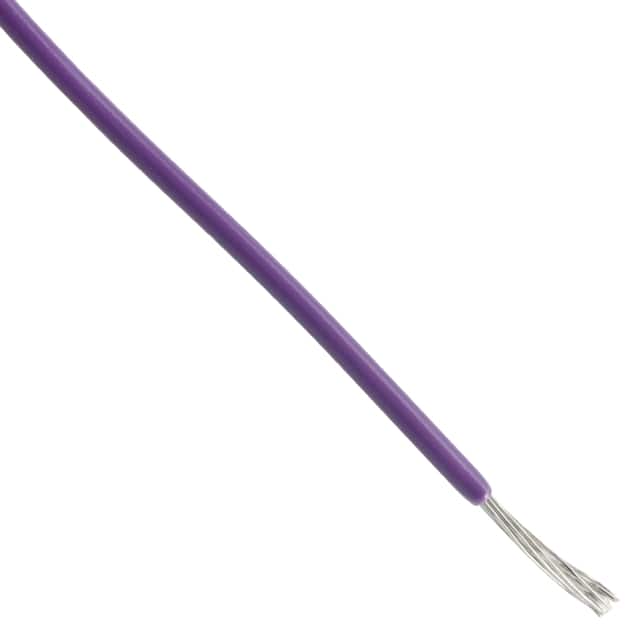

6713-VI001 is a single conductor hookup wire designed for general-purpose electrical connections. It features a 22 AWG (7/30) tinned copper conductor with a nominal diameter of 0.030 inches and modified polyphenylene ether insulation with a 0.0095" wall thickness, resulting in an overall insulation diameter of 0.049 ± 0.002 inches. The wire is rated for 600 VRMS with a temperature range of -40 to 105°C, and offers electrical properties including a conductor DCR of 16.2 O/1000ft at 20°C and inductance of 0.04 µH/ft. This EcoWire product is UL listed (AWM Style 11028, VW-1) and CSA certified (AWM I A/B, FT1), making it suitable for applications requiring RoHS compliance and reliable performance in industrial and electronic equipment.
