6716-RD005

Name: 6716-RD005
Brand: Alpha Wire
SKU: 39133498
Price: 150.67 USD
Availability: InStock

Alpha Wire

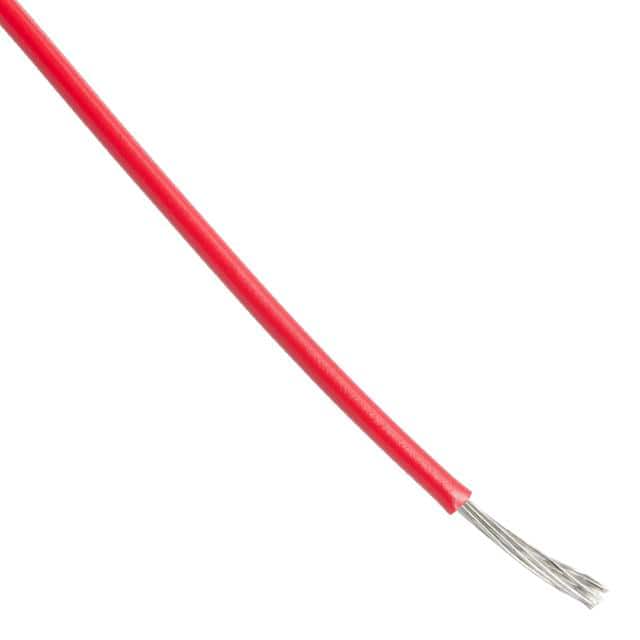

Hook Up Wire - Stranded - 16 (26/30) AWG - 600V - mPPE - Red - 100 ft - Tinned Copper .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6716-RD005

Alias/AKA:

6716-RED-100

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

Size:

16 AWG

Bunch Stranding:

26x30

Conductor Material:

Tinned Copper

Cable Diameter:

2.06 mm

Maximum Voltage Rating:

600 V

Operating Temperature:

-40 to 105 °C

Color:

Red

The 6716-RD005 is a single-conductor 16 AWG hookup wire manufactured by Alpha Wire, featuring a tinned copper conductor with 0.011 inch nominal wall modified polyphenylene ether insulation. It is rated for 600 V RMS at 105°C continuous operation and complies with UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 standards. The wire exhibits a conductor DC resistance of 4.4 O/1000 ft at 20°C, an inductance of 0.03 µH/ft, and operates reliably across a temperature range of -40°C to +105°C with a maximum bend radius of 10 times the cable diameter and pull tension rating of 20.4 lbs. This halogen-free, RoHS-compliant wire is ideal for general-purpose electrical interconnections, control circuits, and equipment wiring in industrial, commercial, and consumer applications where flame-retardant performance and environmental compliance are required.
