L77SDE09S by amphenol communications solutions (acs)

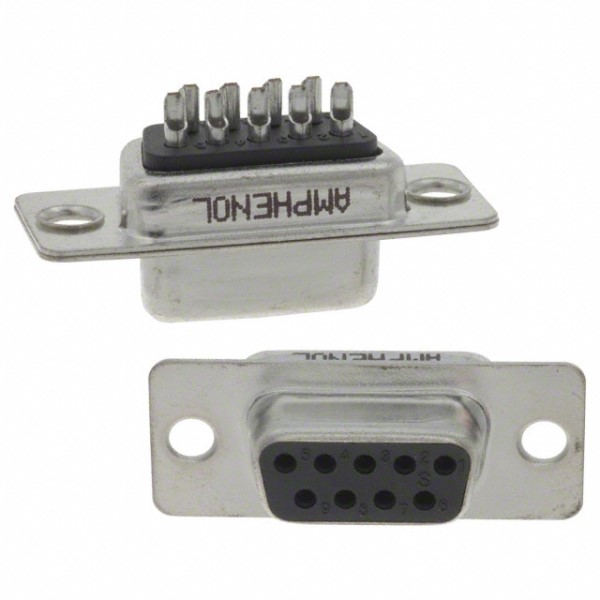

Image is representational - see mfr. specs
DATA SHEET

L77SDE09S

Amphenol Communications Solutions (ACS)

Conn D-Subminiature SKT 9 POS 1.38mm Solder Cup ST Panel Mount 9 Terminal 1 Port .. see full description

RoHS Compliant
TRAY Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Amphenol Communications Solutions (ACS)
Part No:
L77SDE09S
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
TRAY
Type:
D-Subminiature3530
Body Orientation:
Straight3506
Mounting:
Panel Mount3516
Gender:
SKT3507
Termination Method:
Solder Cup3529
Shell Size:
E3527
Number of Contacts:
9
Contact Plating:
Gold Over Nickel3509
Operating Temperature:
-55 to 125 °C
The AMPHENOL L77SDE09S is a durable and reliable D-Subminiature connector designed for commercial applications. This connector features a 9-position socket configuration and a 1.38mm solder cup termination, making it suitable for various industrial and electronic projects. Its panel mount design ensures secure installation, and it comes with 9 terminals and 1 port for seamless connectivity. Whether you need to establish connections in data communication systems, industrial machinery, or any other commercial setup, the AMPHENOL L77SDE09S D-Subminiature connector offers superior performance and excellent signal transmission.
Search Keywords:
L77SDE09S
  Possible Replacement options available.  See Alternatives
IN STOCK: 4
Ships today, if you order in
Buy all 4 in-stock or the regular minimum order quantity of 100
On Order:
2,000   can ship 6/4/26
Stock lot only:
4
Minimum Order Quantity:
100
Multiple:
100
Factory Lead-Time
13 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$0.7887
$0.7887
100
$0.7170
$71.7000
300
$0.6700
$201.0000
1,000
$0.5900
$590.0000
2,500
$0.5760
$1,440.0000
5,000
$0.5740
$2,870.0000
7,500
$0.5730
$4,297.5000
10,000
$0.5710
$5,710.0000
15,000 +
$0.5700
$8,550.0000
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
