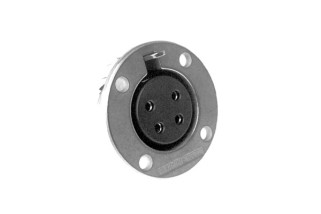

Image is representational - see manufacturer specifications

DATA SHEET

GBSX-5

Name: GBSX-5
Brand: Curtis Industries
SKU: 11078256
Price: 35.45 USD
Availability: InStock

Curtis Industries

The GBSX-5 is a 5-terminal, closed-back terminal block with a thermoplastic housing, unplated brass inserts, and a 7/16-inch center-to-center spacing. .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Curtis Industries

Part No:

GBSX-5

Alias/AKA:

269735000

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier's Standard Package The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

200

Type:

Barrier Strip

Mounting:

Panel Mount

Gender:

N/A

Termination Method:

Screw

Pitch:

11.11 mm

Number of Circuits:

Maximum Voltage Rating:

600 V

Maximum Current Rating:

20 A

Wire Size:

12-22 AWG

Operating Temperature:

150(Max) °C

The GBSX-5 is a 5-terminal, closed-back terminal block from the GB series, featuring a thermoplastic polyphenylene oxide housing. It is rated for 20 amps and has multiple UL voltage ratings up to 600V for limited energy applications, with a CSA rating of 300V. The block accepts wire sizes from #22 to #12 AWG using No. 6-32 screws with a recommended tightening torque of 9 in-lb. Key characteristics include a continuous use temperature of 110°C, a UL 94V-0 flammability rating, and a typical terminal-to-terminal breakdown voltage of 5,800V. Its closed-back design allows for direct mounting on metal surfaces without additional insulation, making it ideal for various industrial and commercial wiring applications.

Product Highlights:

Potential Applications:

Search Keywords:

GBSX5

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 190

Ships today, if you order in

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

200 can ship 2/1/27

Stock lot only:

MOQ for In Stock Qty:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

13 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

A tariff of {0} may be applied if shipping to the United States.

Quantity

Unit Price

Ext. Price

$7.09

$35.45

$7.08

$70.80

$7.06

$176.50

$7.04

$352.00

100

$5.28

$528.00

150

$4.93

$739.50

200 +

$4.83

$966.00
