8820K16 by cutler-hammer / eaton

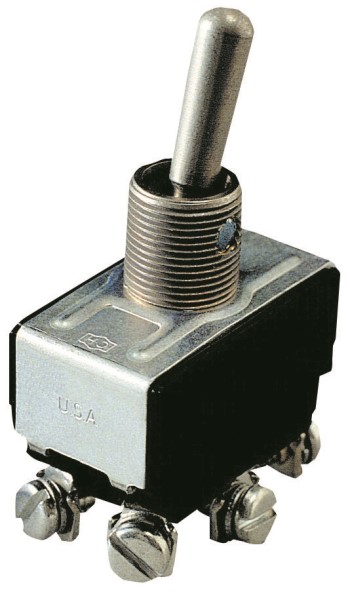

Image is representational - see manufacturer specifications
DATA SHEET

8820K16

Cutler-Hammer / Eaton

Switch Toggle ON OFF ON DPDT Round Lever Screw 20A 115VAC 28VDC Panel Mount with Threads .. see full description

RoHS Compliant
Packaging

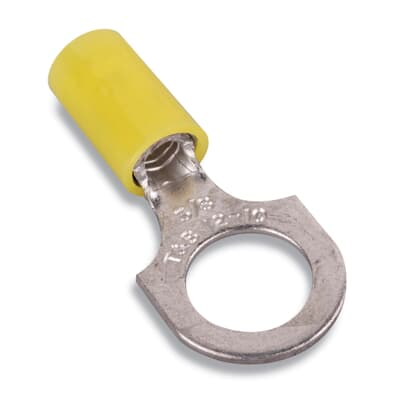

Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Cutler-Hammer / Eaton
Part No:
8820K16
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
20@115VAC 28VDC A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
33.27 x 19.05 x 56.26 mm
Operating Temperature:
-17.8 to 65.6 °C
The CUTLER HAMMER/EATON part 8820K16 is a versatile switch toggle designed for various applications. It features a durable construction and a round lever with a screw for easy operation. This switch is designed with DPDT (Double Pole Double Throw) functionality, enabling multiple circuit control options. It has a rating of 20A for 115VAC and 28VDC, making it suitable for a wide range of voltage requirements. The panel mount design with threads ensures secure installation and stability. This switch toggle is a reliable and efficient solution for your electrical control needs.
Search Keywords:
8820K16
IN STOCK: 42
Ships today, if you order in
Factory Lead-Time
12 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$50.43
$50.43
5
$46.59
$232.95
10
$41.19
$411.90
25
$38.77
$969.25
50
$37.97
$1,898.50
100
$35.50
$3,550.00
250 +
$31.43
$7,857.50
Supplier's Standard Package
Product Guides
PDF Datasheet
