306-006-500-102 by edac

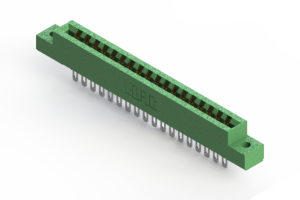

Image is representational - see manufacturer specifications
DATA SHEET

306-006-500-102

EDAC

Card Edge Connector - 6 Contacts - 0.156” (3.96mm) Pitch - Centre Row - 0.062” (1.57mm) Thick PCB - Board Mount .. see full description

RoHS Compliant
BULK Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
EDAC
Part No:
306-006-500-102
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BULK
Type:
Card Edge
Body Orientation:
Straight
Mounting:
Panel Mount
Termination Method:
Solder
Card Thickness:
1.37 to 1.78 mm
Pitch:
3.96 mm
Number of Contacts:
6
Operating Temperature:
-65 to 105 °C
306 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 6 Wire Hole type contacts with gold plating on the contact area. The tails are .087" x .015" (2.21mm x 0.38mm) thick and .282" (7.16mm) long in a Single Central Row formation. The Insulator is Green in color with Ø.128" (Ø3.25mm) Mounting Holes .
Search Keywords:
306006500102
IN STOCK: 0
On Order:
500   can ship 12/21/26
Minimum Order Quantity:
5
Factory Lead-Time
13 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$13.70
$68.50
25
$8.23
$205.75
100
$7.17
$717.00
250
$5.67
$1,417.50
500
$5.66
$2,830.00
1,000
$5.65
$5,650.00
2,500
$5.63
$14,075.00
5,000 +
$5.62
$28,100.00
