306-022-520-102 by edac

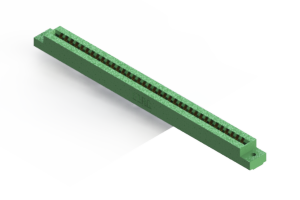

Image is representational - see mfr. specs
DATA SHEET

306-022-520-102

EDAC

Card Edge Connector - 22 Contacts - 0.156” (3.96mm) Pitch - Centre Row - 0.062” (1.57mm) Thick PCB - Board Mount .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
EDAC
Part No:
306-022-520-102
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Type:
Card Edge
Body Orientation:
Straight
Mounting:
Through Hole
Termination Method:
Solder
Card Thickness:
1.37 to 1.78 mm
Pitch:
3.96 mm
Number of Contacts:
22
Operating Temperature:
-65 to 105 °C
306 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 22 P.C Tail type contacts with gold plating on the contact area. The tails are .046" x .015" (1.17mm x 0.38mm) and .213" (5.41mm) long in a Single Central Row formation. The Insulator is Green in color with Ø.128" (Ø3.25mm) Mounting Holes .
Search Keywords:
306022520102
IN STOCK: 253
Can Ship immediately
On Order:
1,000   can ship 8/14/26
Minimum Order Quantity:
25
Multiple:
25
Factory Lead-Time
17 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
25
$12.58
$314.50
50
$11.89
$594.50
100
$11.27
$1,127.00
250
$10.56
$2,640.00
500
$9.32
$4,660.00
1,000
$8.42
$8,420.00
2,500 +
$8.30
$20,750.00
Suppliers Standard Package
