71BDF30-01-2-AJN by grayhill

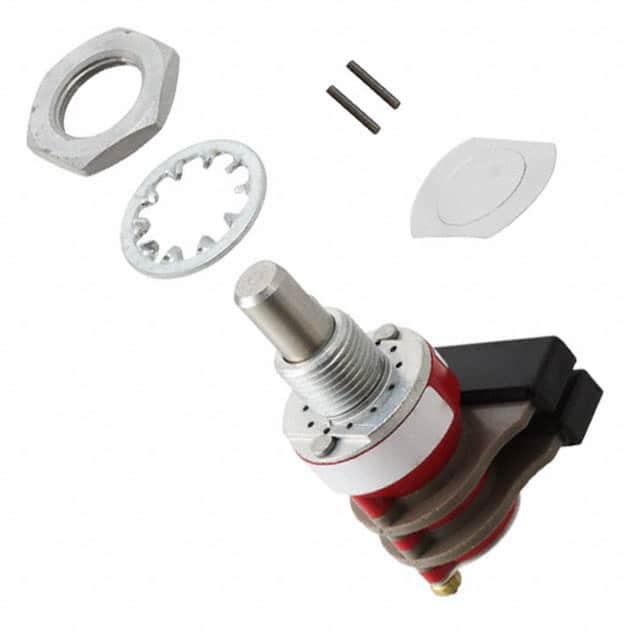

Image is representational - see mfr. specs
DATA SHEET

71BDF30-01-2-AJN

Grayhill

Switch Rotary DP6T 6 Flatted Shaft PC Pins 0.3A 115VAC 30VDC Automotive .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
71BDF30-01-2-AJN
Alias/AKA:
71BDF30-01QAJN
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
6
Pole Throw Configuration:
DP6T
Actuator Length:
9.53 mm
Dimension:
22.23mm x 36.78mm x 18.08 mm
Actuator Style/Diameter:
Flatted Shaft/6.36
Mounting:
Panel Mount/Through Hole
Body Orientation:
Right Angle
Terminal Type:
PC Pins
Angle of Throw:
30 °
Contact Rating @ Voltage:
0.3@115VAC A
The GRAYHILL part 71BDF30-01-2-AJN is a high-quality rotary switch designed for automotive applications. It features a double pole six throw (DP6T) configuration and has six flatted shafts for easy and secure installation. The switch has PC pins for reliable electrical connections and is capable of handling currents up to 0.3A at 115VAC or 30VDC. With its robust construction and automotive-grade reliability, this switch is an ideal choice for a wide range of automotive applications.
Search Keywords:
71BDF30012AJN
IN STOCK: 200
Can Ship immediately
MOQ for out of Stock Qty:
7
Factory Lead-Time
9 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$42.91
$42.91
5
$30.37
$151.85
7
$29.40
$205.80
13
$28.15
$365.95
19
$27.88
$529.72
25 +
$23.06
$576.50
Product Guides
PDF Datasheet
