1TL1-2D
HoneywellMICRO SWITCH™ Toggle Switches: TL Series, Single Pole Single Throw (SPST) 2 Position (Off - On), Screw Terminals, Locking Lever (Locked Out Of Center Position), Military Part Number MS24658-22D .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1TL1-2D
Alias/AKA:
MS24658-22D
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
Supplier Standard Pack
1
Package Type:
Box
Pole Throw Configuration:
1P1T (SPST)
Switch Configuration:
OFF None ON
Contact Rating @ Voltage:
20@28VDC A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.4 x 15.7 x 72.9 mm
Operating Temperature:
-65 to 72 °C
<p>The 1TL1-2D Toggle Switch from Honeywell features high-strength, temperature resistant, non-tracking case material and silver cadmium oxide contacts. The TL series toggle switches are qualified to meet military specifications and are UL recognized, CSA certified and CE approved for global use. Toggle Switches are manually actuated by means of a projecting lever, such as mechanical lever, handle or a rocking mechanism. These electrical switches are available in many different styles and sizes. These switches are generally used in various applications such as industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, and medical instrumentation.</p>
<p>This 1TL1-2D Honeywell switch comes with SPST circuitry, a completely sealed switching chamber and
a step-design case for added space between terminals, to prevent shorting. This Toggle Switch allows both maintained and momentary toggle action. It comes with environment-proof sealing. </p>
Product Highlights:
- Environment-proof sealing
- Completely sealed switching chamber
- 1, 2, and 4 pole circuitry
- Standard and poll-to-unlock levers
- Step-design case provides added space between terminals to help prevent shorting
- 2 and 3 position, maintained and momentary toggle action
- Temperature range: -85 °F to +160 °F
- Qualified to MIL-DTL-3950
- ol recognized, CSA certified
- CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>Search Keywords:
1TL12D
IN STOCK:
1,063
Can Ship immediately
Factory Lead-Time
6 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$53.60
$53.60
5
$44.16
$220.80
10
$38.83
$388.30
25
$37.12
$928.00
50
$36.94
$1,847.00
100
$35.11
$3,511.00
250
+
$34.85
$8,712.50
Click for Quote
Tools/3D Models
Product Guides
Product Changes
CUSTOMERS
ALSO BOUGHT

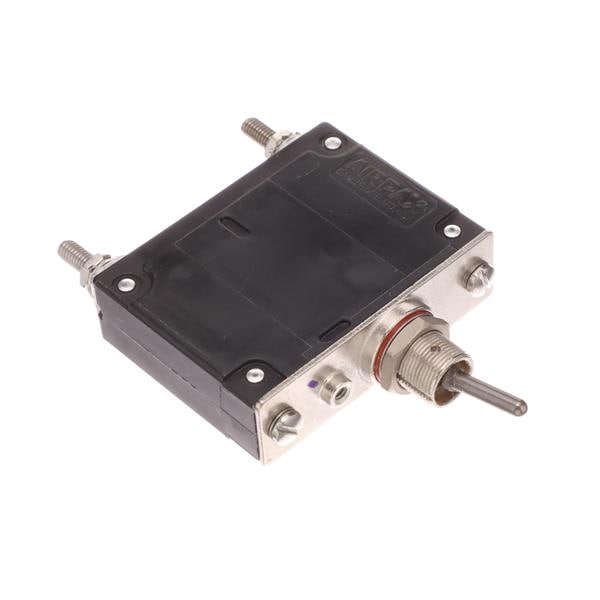

AP12-1-64-103
