1TL163-7 by honeywell

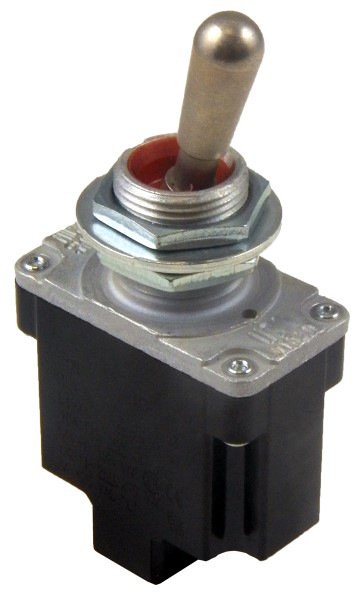

Image is representational - see mfr. specs
DATA SHEET

1TL163-7

Honeywell

MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw (SPDT) 3 Position (Mom. On - Off - Mom. On), Screw Terminals, Special Off-Set Natural Aluminum Tab Lever .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1TL163-7
RoHS:
Yes
HTS:
85365080
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
(On) Off (On)
Contact Rating @ Voltage:
372.85@(CSA/UL) A
Actuator Style:
Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.45 x 15.75 x 64.26 mm
Operating Temperature:
-65 to 71 °C
The HONEYWELL part 1TL163-7 is a high-quality MICRO SWITCHâ„¢ Toggle Switch from the TL Series. This single pole double throw (SPDT) switch is designed with a 3 position configuration - mom. on (momentary on) - off - mom. on. Featuring screw terminals for easy installation, this switch also comes with a special off-set natural aluminum tab lever for smooth and reliable operation. Perfect for various industrial applications, this toggle switch ensures excellent performance and durability.
Product Highlights:
  • Environment-proof sealing
  • 1,2, and 4 pole circuitry
  • Standard and pull-to-unlock levers
  • 2 and 3 position, maintained and momentary toggle action
  • Temperature range: -85 F to +160 F
  • Completely sealed switching chamber
  • Step-design case provides added space between terminals to help prevent shorting
  • UL recognized, CSA certified
  • CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>
Search Keywords:
1TL1637
IN STOCK: 0
MOQ for out of Stock Qty:
13
Factory Lead-Time
27 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
13
$258.14
$3,355.82
25
$142.13
$3,553.25
38
$98.70
$3,750.60
50 +
$96.73
$4,836.50
Suppliers Standard Package
