4TL1-12E by honeywell

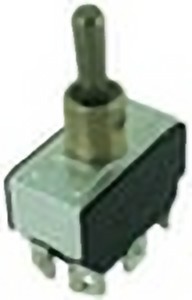

Image is representational - see mfr. specs
DATA SHEET

4TL1-12E

Honeywell

MICRO SWITCH™ Toggle Switches: TL Series, 4 Pole Double Throw (4PDT) 3 Position, Special Circuitry (On - On - On), Screw Terminals, Locking Lever (Locked In Center Position), Military Part Number MS27409-1E .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
4TL1-12E
Alias/AKA:
MS27409-1E
RoHS:
Yes
HTS:
85365080
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Pole Throw Configuration:
2P3T (DP3T)
Switch Configuration:
ON ON ON
Contact Rating @ Voltage:
745.7 A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
33.5mm x 41.6mm x 72.9mm
Operating Temperature:
-65 to 71 °C
The HONEYWELL part 4TL1-12E is a MICRO SWITCHâ„¢ Toggle Switch from the TL Series, featuring a 4 Pole Double Throw (4PDT) 3 Position configuration with special circuitry (On - On - On). Designed with screw terminals for easy installation, this toggle switch also includes a locking lever that is locked in the center position. It is classified by the military as part number MS27409-1E, ensuring high-quality and reliability. Ideal for various applications, this toggle switch is a dependable choice for military and industrial use.
Product Highlights:
  • Qualified to MIL-S-3950
  • Environment-proof sealing
  • 1,2, and 4 pole circuitry
  • Standard and pull-to-unlock levers
  • 2 and 3 position, maintained and momentary toggle action
  • Temperature range: -85 F to +160 F
  • Completely sealed switching chamber
  • Step-design case provides added space between terminals to help prevent shorting
  • UL recognized, CSA certified
  • CE approved
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>
Search Keywords:
4TL112E
IN STOCK: 91
Can Ship immediately
MOQ for out of Stock Qty:
13
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$174.49
$174.49
5
$154.94
$774.70
10
$148.31
$1,483.10
13
$146.62
$1,906.06
25
$144.95
$3,623.75
38
$144.22
$5,480.36
50 +
$143.50
$7,175.00
