BZE6-2RN18 by honeywell

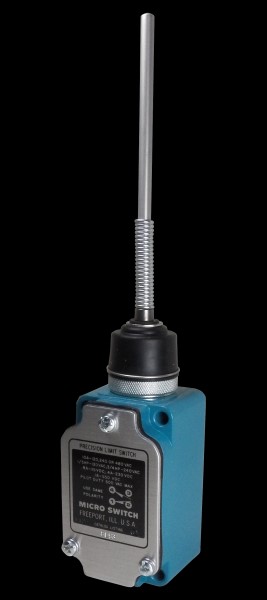

Image is representational - see mfr. specs
DATA SHEET

BZE6-2RN18

Honeywell

Limit Switch - Wobble Coil Spring - SPDT-1NO - SPDT-NC - 15 A - 600 V - 2 N - E6 Series. .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
BZE6-2RN18
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Box
Type:
Enclosed
Actuator Style:
Coil Spring
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
1.95 N
Maximum Current Rating:
0.5@125VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4
Body Orientation:
Straight
The BZE6-2RN18 is a MICRO SWITCH™ medium-duty Limit Switch with coil spring wobble stick actuator modification, standard internal basic switch construction, standard (single-break) contact, seal boot plunger type, snap action operation and screw terminal. Lead washer is used to seal the mounting holes on side mount switch. Side mount switch is installed with #6 screws. Removal of the bottom enclosure exposes the terminals for easy wiring.
Product Highlights:
  • Side or flange mount
  • Momentary or maintained contact
  • Grounding screw
  • High capacity (22 amp) available
  • Temperature range -32 C to +71 C [ -25 F to +160 F]
  • Zinc Die-Cast housing NEMA 1
  • UL Recognized, file #E12252
  • CSA Certified, file #LR41372
  • NEMA 1, 3, 4 /IP66
  • Pre-leaded or connector termination options
Potential Applications:
<ul><li>Packaging equipment </li><li>Special machinery </li><li>Textile machinery </li><li>Conveyors </li><li>Construction machinery and equipment </li><li>Printing trades machinery </li><li>Overhead cranes and hoists</li></ul>
Search Keywords:
BZE62RN18
IN STOCK: 95
Can Ship immediately
Factory Lead-Time
5 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$133.16
$133.16
5
$129.78
$648.90
10
$109.97
$1,099.70
20
$109.70
$2,194.00
50
$109.42
$5,471.00
100 +
$109.15
$10,915.00
Suppliers Standard Package
