142-0701-851 by johnson / cinch connectivity solutions

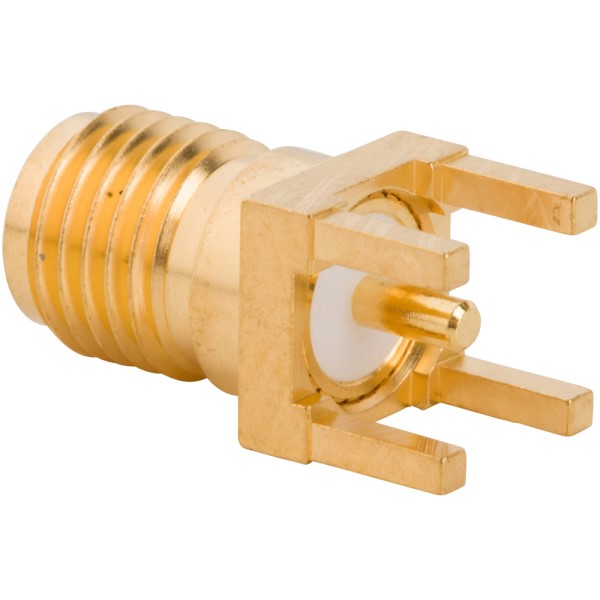

Image is representational - see manufacturer specifications
DATA SHEET

142-0701-851

Johnson / Cinch Connectivity Solutions

SMA Jack Assembly, End Launch

RoHS Compliant
TRAY Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Johnson / Cinch Connectivity Solutions
Part No:
142-0701-851
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
TRAY
Type:
SMA
Impedance:
50 Ohm
Operating Frequency:
0 to 18 Hz to GHz
Gender:
RCP
Mounting:
Edge Mount
Body Orientation:
Straight
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
-65 to 165 °C
Dimension:
9.52 x 14.27 x 7.92 mm
The 142-0701-851 from Johnson is a straight SMA edge (end) launch jack receptacle connector. The SMA connectors are precision connectors for microwave applications up to 18GHz and impedance of 50 ohm.
Search Keywords:
1420701851
IN STOCK: 3,057
Can Ship immediately
On Order:
20,000   can ship 9/14/26
10,000   can ship 10/5/26
Minimum Order Quantity:
5
Factory Lead-Time
25 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$4.50
$22.50
50
$3.47
$173.50
100
$3.27
$327.00
250
$3.04
$760.00
500
$2.88
$1,440.00
1,000
$2.83
$2,830.00
3,000
$2.82
$8,460.00
5,000 +
$2.81
$14,050.00
Supplier's Standard Package
