ET21MD1CBE by littelfuse / c-k

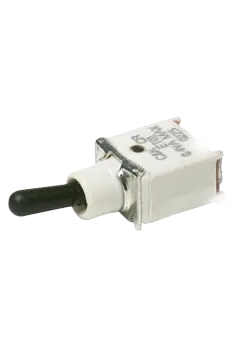

Image is representational - see manufacturer specifications
DATA SHEET

ET21MD1CBE

Littelfuse / C&K

The ET21MD1CBE is a sealed, subminiature DPDT toggle switch with an On-None-On function and PC thru-hole terminals. .. see full description

RoHS Compliant
OTHER Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
ET21MD1CBE
RoHS:
Yes
HTS:
853650
COO:
CN
ECCN:
EAR99
Supplier's Standard Package The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
200
Package Type:
OTHER
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount
Thread Size:
N/R
Body Orientation:
Straight
Terminal Type:
PC Pins
Dimension:
8.13mm x 9.14mm x 19.49 mm
Operating Temperature:
-30 to 85 °C
The ET21MD1CBE is a DPDT (Double Pole, Double Throw) subminiature toggle switch from the ET series, featuring an On-None-On switching function. It is designed with gold contacts rated for 0.4 VA maximum at 20V AC or DC and has an electrical life of 30,000 cycles. The switch is epoxy sealed, providing IP57-rated protection against dust and temporary immersion, making it suitable for processes involving soldering and cleaning. With its compact size and robust sealing, this switch is ideal for applications such as hand-held telecommunications, instrumentation, and medical equipment.
Search Keywords:
ET21MD1CBE
IN STOCK: 14
Ships today, if you order in
MOQ for In Stock Qty:
5
MOQ for out of Stock Qty:
50
Factory Lead-Time
8 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$11.79
$58.95
10
$11.65
$116.50
25
$11.42
$285.50
50
$11.20
$560.00
100
$11.09
$1,109.00
150
$10.98
$1,647.00
200 +
$10.87
$2,174.00
