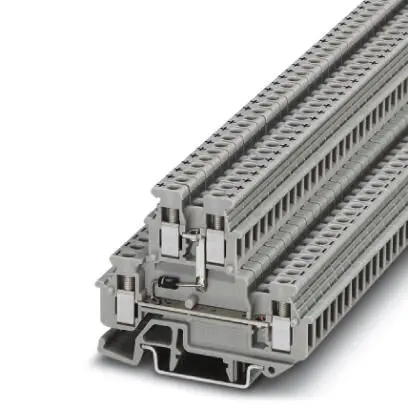

Image is representational - see manufacturer specifications

DATA SHEET

MMGGF5L0C

Name: MMGGF5L0C
Brand: LittelfuseCK
SKU: 11122611
Price: 160.8 USD
Availability: OutOfStock

Littelfuse/C&K

Subminiature Precision Snap-acting Switch .. see full description

RoHS Compliant

TRAY Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Littelfuse/C&K

Part No:

MMGGF5L0C

RoHS:

Yes

HTS:

853650

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

120

Package Type:

TRAY

Mounting:

Through Hole

Pole Throw Configuration:

SPDT

Switch Configuration:

N.O./N.C.

Actuator Material/Style:

N/A/Phenolic/Leaf Lever

Contact Rating @ Voltage:

1@125VAC 30VDC A

Maximum Movement Differential:

0.64 mm

Operating Force:

1.13 N

Termination Style:

Solder

Dimension:

17.34mm x 5.08mm x 12.95 mm

Body Orientation:

Straight

IP Rating:

N/A

MMGGF5L0C is a subminiature precision snap-acting switch from the C&K MM Series, designed for reliable low-level and power switching in space-constrained applications. This SPDT momentary switch features a GG operating force of 5 oz. (142 grams) maximum, an F5 electrical rating of 1 A at 125 V AC or 30 V DC, and utilizes 24K gold contacts for superior low-level performance. The L0 leaf actuator provides maximum operating force of 4 oz. (115 grams), minimum release force of 0.7 oz. (20 grams), maximum pretravel of 0.090 in. (2.29 mm), and minimum overtravel of 0.045 in. (1.14 mm). The switch operates over a temperature range of -55°C to 135°C and offers an electrical life of 100,000 cycles at full rated load. Ideal for communication devices and applications with limited space constraints where reliable snap-acting performance is required.

Product Highlights:

Potential Applications:

Search Keywords:

MMGGF5L0C

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

16 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

A tariff of {0} may be applied if shipping to the United States.

Quantity

Unit Price

Ext. Price

$16.08

$160.80

$14.66

$439.80

$13.92

$835.20

$13.89

$1,250.10

120 +

$12.47

$1,496.40

Supplier's Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

Product Drawing

Datasheet
