NAC3MPB-1 by neutrik
Image is representational - see mfr. specs
DATA SHEET

NAC3MPB-1

NEUTRIK

powerCON 20 A - Chassis connector - power-out - 3/16'' flat tab terminals - grey The powerCON is a locking 3 conductor equipment AC connector with contacts for line - neutral and pre-mating ground contact. It replaces appliance couplers wherever a very

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NAC3MPB-1
RoHS:
Yes
HTS:
8536694020
COO:
GB
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Power
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
M
Number of Contacts:
2Power/1Ground
Termination Method:
N/A
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
20/Contact A
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
The NAC3MPB-1 is Chassis connector, power-out, 3/16'' flat tab terminals, grey The NAC3MPB-1 has rated voltage of 250 V ac and rated current per contact of 20 A rms and dielectric strength of 4 kVdc / 2.8 kVac
Search Keywords:
NAC3MPB1
  This product is not in stock and cannot be back-ordered
Minimum Order Quantity:
23
Please Note: Tariffs may apply for U.S. shipments

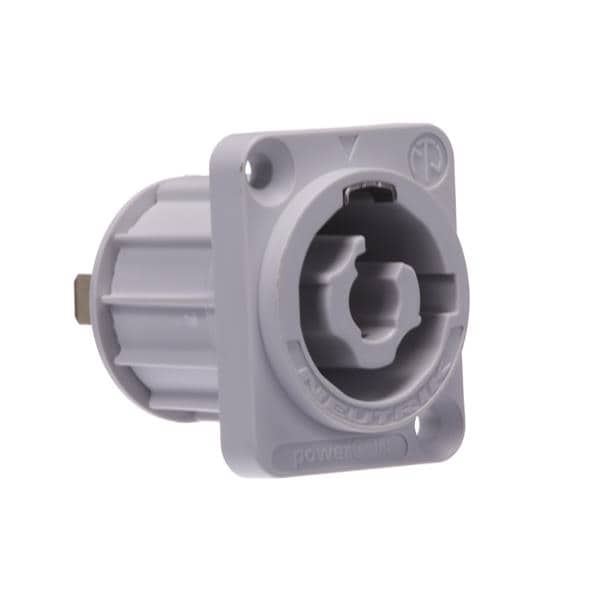

RECOMMENDED REPLACEMENT
NAC3MPXXB
NAC3MPXXB
VIEW PRODUCT
