NC5FD-L-B-1 by neutrik

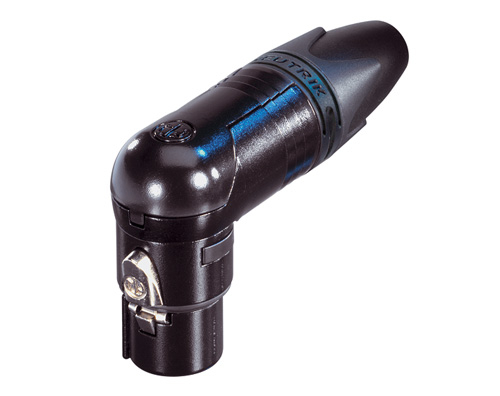

Image is representational - see mfr. specs
DATA SHEET

NC5FD-L-B-1

NEUTRIK

DL Series - 5 pole female receptacle - solder cups, black metal housing,  gold contacts Universal D-size metal body XLR panel mount series. UL recognized component. .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
NEUTRIK
Part No:
NC5FD-L-B-1
RoHS:
Yes
HTS:
8536694030.00
COO:
HU
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Housing Material:
Zinc Die Cast
Number of Contacts:
5
Contact Plating:
AuCo Over NiP15
Termination Method:
Solder Cup
Operating Temperature:
-30 to 80 °C
The NC5FD-L-B-1 is 5 pole female receptacle, solder cups, black metal housing,  gold contacts The NC5FD-L-B-1 has rated voltage of < 50 V and rated current per contact of 7,5 A and dielectric strength of 1,5 kVdc . Universal D-size metal body XLR panel mount series. UL recognized component.
Product Highlights:
  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version
Search Keywords:
NC5FDLB1
IN STOCK: 909
Ships today, if you order in
Minimum Order Quantity:
5
Factory Lead-Time
3 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$14.64
$73.20
25
$13.55
$338.75
50
$13.41
$670.50
100
$12.24
$1,224.00
300
$12.07
$3,621.00
500
$12.01
$6,005.00
1,000 +
$11.95
$11,950.00
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
