NHD-C12864B2Z-RN-FBW by newhaven display
Image is representational - see manufacturer specifications
DATA SHEET

NHD-C12864B2Z-RN-FBW

Newhaven Display

Chip on Glass- Graphic - 128 x 64 Pixels - 3.3V - Parallel - Controller:ST-7565R - 27-Pin FPC

RoHS Compliant
BULK Packaging

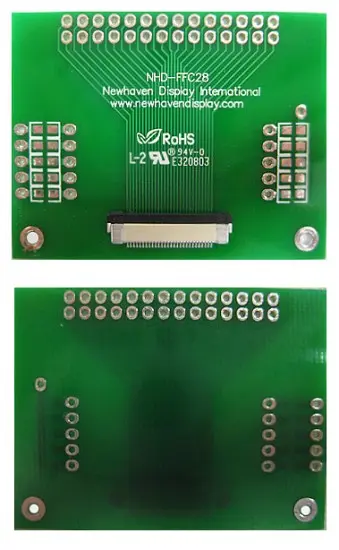

Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-C12864B2Z-RN-FBW
RoHS:
Yes
HTS:
8524919000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BULK
Display Format:
128 x 64 Pixels
Resolution Standard:
N/A
LCD Type:
FSTN
Display Mode:
Reflective
Data Color:
Black
Background Color:
Gray
Backlight:
None
Active Area:
39.64 x 19.6 mm
Dimension:
48.0 x 36.0 x 2.0 mm
Interface:
Parallel
Supply Voltage:
3.3 V
Touchscreen:
No
Operating Temperature:
-20 to 70 °C
The NHD-C12864B2Z-RN-FBW is a 128 x 64 Pixels Chip on Glass. It features a FSTN (+) Reflective Display with a No Backlight. Character size is / mm. It uses an Parallel Interface. Voltage requirement is 3.3V. Controller required is the ST-7565R
Search Keywords:
NHDC12864B2ZRNFBW
IN STOCK: 0
Minimum Order Quantity:
5
Factory Lead-Time
18 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$19.03
$95.15
10
$18.15
$181.50
25
$17.61
$440.25
50
$17.10
$855.00
100
$14.70
$1,470.00
250
$14.31
$3,577.50
500 +
$14.12
$7,060.00
