HE2AN-Q-AC120V by panasonic electronic components

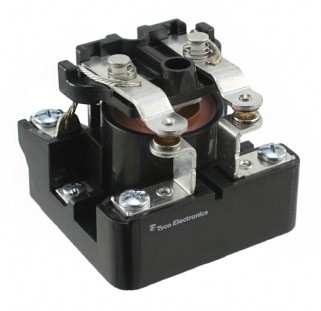

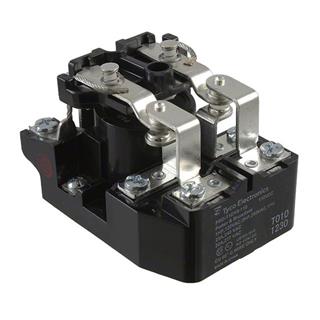

Image is representational - see mfr. specs
DATA SHEET

HE2AN-Q-AC120V

Panasonic Electronic Components

Power Relay 120VAC 25A DPST-NO(60x33x46.2)mm Flange .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
HE2AN-Q-AC120V
RoHS:
Yes
HTS:
8536410050
COO:
JP
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPST-NO
Mounting:
Flange Mount
Termination Style:
0.25Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-50 to 55 °C
The Panasonic EW/Aromat HE2AN-Q-AC120V is a power relay designed for a 120VAC input voltage. With a 25A current rating and a DPST-NO contact configuration, it is suitable for high-power applications. The relay is compact, measuring only 60x33x46.2mm, and features a flange for easy installation. It is a reliable and durable component that ensures safe and efficient electrical switching.
Search Keywords:
HE2ANQAC120V
IN STOCK: 1,755
Can Ship immediately
Factory Lead-Time
25 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$32.03
$32.03
5
$31.70
$158.50
20
$31.08
$621.60
40
$30.77
$1,230.80
60
$30.46
$1,827.60
100
$30.16
$3,016.00
260 +
$29.86
$7,763.60
Suppliers Standard Package
