0313085
Phoenix ContactSlide-type terminal block - with slide - nom. voltage: 500 V - nominal current: 41 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 10 mm² - AWG: 20 - 8 - width: 8.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 - NS 32 .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
0313085
Alias/AKA:
UGSK/S-+-GS
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier's Standard Package
50
Termination Method:
Screw
Contact Plating:
N/A
Number of Circuits:
1
Number of Rows:
2
Maximum Current Rating:
41 A
Mounting:
G DIN Rail,T DIN Rail
Body Orientation:
Straight
Contact Material:
N/A
Number of Contacts:
2
Type:
Disconnect and Test Disconnect Terminal Block
Family:
0313085
Wire Size:
8-20 AWG
Gender:
F
Housing Color:
Gray
Pitch:
N/R
Housing Material:
Polyamide
Dimension:
61mm x 8.2mm x 61mm
Maximum Voltage Rating:
500 V
Operating Temperature:
N/A
Slide-type terminal block - with slide - nom. voltage: 500 V - nominal current: 41 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 10 mm² - AWG: 20 - 8 - width: 8.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 - NS 32
Search Keywords:
0313085
IN STOCK:
50
Ships today, if you order in
Factory Lead-Time
7 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$13.91
$13.91
50
+
$13.21
$660.50
Product Guides
Datasheet
Accessories
EB-2-8
Insertion bridge - pitch: 8 mm - number of positions: 2 - color: gray

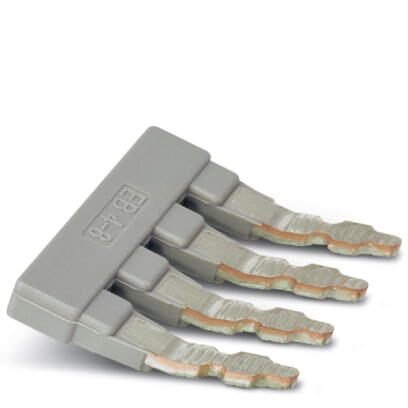

EB-4-8
Insertion bridge - pitch: 8 mm - number of positions: 4 - color: gray

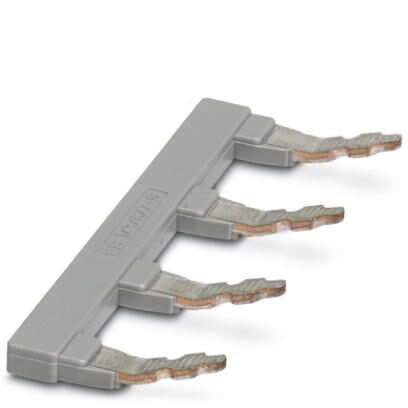

EB-1/3/5/7-8
Insertion bridge - pitch: 16.4 mm - length: 24 mm - width: 55.4 mm - number of positions: ...
PSBJ-GSK/S-RD
Female test connector - color: red
PSBJ-GSK/S-BU
Female test connector - color: blue
PSBJ-GSK/S-GY
Female test connector - color: gray
ZB-8-CUS
Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...
UC-TM-8-CUS
Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...
NS-35/15-AL-UNPERF-2000MM
DIN Rail - 35mmx15mm - Unslotted - Aluminum - 2m

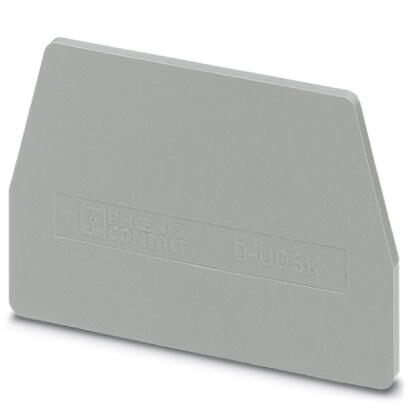

D-UGSK
End cover - length: 61 mm - width: 2.2 mm - height: 41.5 mm - color: gray
E/UK
End clamp - width: 9.5 mm - height: 35.3 mm - material: PA - length: 50.5 mm - Mounting on ...
NS-35/15-ZN-UNPERF-2000MM
DIN Rail - 35mmx15mm - Unslotted - Steel 2m
UC-TM-8
Connector Accessories Terminal Block Marker Straight Polyamide White
EB-10-8
Universal Accessories; Insertion Bridge; 10; Terminal Block and Strips
CLIPFIX-35
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...
E/NS-35-N
Phoenix Contact DIN Rail End Clamp; E/NS 35 N; for 35mm DIN Rail; Screw Terminal; Gray
NS-35/15-CAP
DIN rail end piece - for DIN rail NS 35/15

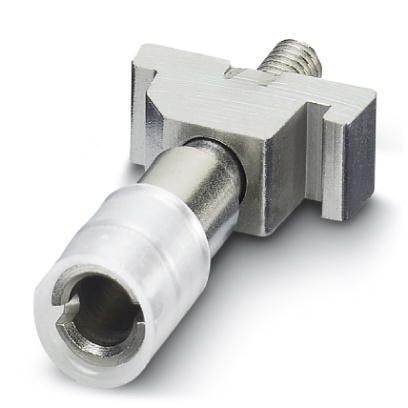

PSBJ-GSK/S-FARBLOS
Female test connector - with slide - color: transparent
KSS-8
Short-circuit connector - pitch: 8 mm - number of positions: 2 - color: black
ATS-GSK
Partition plate - length: 59.5 mm - width: 0.8 mm - height: 45.5 mm - color: gray
STSL-GSK
Separating plate - width: 0.8 mm - color: gray

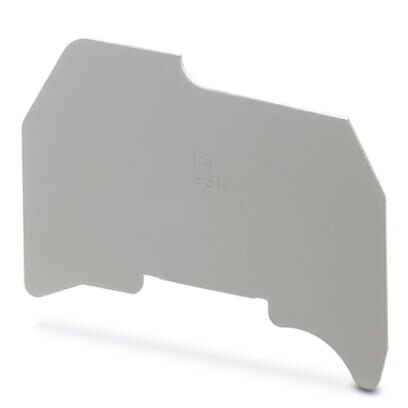

TS-GSK
Separating plate - length: 61 mm - width: 0.8 mm - height: 45.5 mm - color: gray
GS-GSK/S
Slide - color: silver
NS-35/15-ZN-PERF-2000MM
DIN Rail - 35mmx15mm - Slotted - 2m
EB-3-8
Terminal Block Tools & Accessories EB 3- 8 3P INSERTION BRIDGE
E/UK-1
End clamps - for supporting the ends of double-level and three-level terminal blocks - wid ...

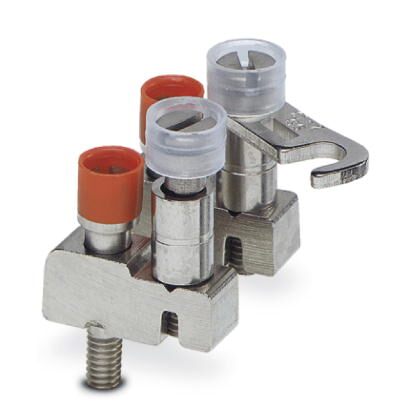

SBJ-2-8/13-GSK/S
Switching jumper - pitch: 13 mm - number of positions: 2 - color: silver
UCT-TM-8
Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...
CLIPFIX-35-5
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

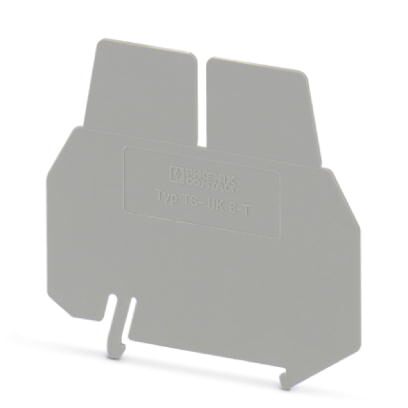

TS-UK-6-T
The 3072820 is a gray separating plate made from polyamide, designed for electrical insula ...
ZB-8:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: CMS-P1-PLOTTER - PLOT ...
PSBJ-GSK/S-YE
Female test connector - color: yellow
PSBJ-GSK/S-GN
Female test connector - color: green
PSBJ-GSK/S-BK
Female test connector - color: black
FB-10-GSK/S
Terminal Block Tools & Accessories FB 10- GSK/S
NS-35/15-PERF-2000MM
DIN Rail - 35mmx15mm - Slotted - 2m
NS-35/15-WH-PERF-2000MM
Connector Accessories DIN Rail Straight Steel White
NS-35/15-UNPERF-2000MM
The 1201714 is an unperforated, standard profile DIN rail made of galvanized steel, measur ...
KSSI-4-8
Short-circuit connector - pitch: 8 mm - number of positions: 4 - color: black
NS-32-PERF-2000MM
DIN Rail - 32mmx15mm - Slotted - 2m
NS-32-UNPERF-2000MM
DIN Rail - 32mmx15mm - Unslotted - Steel 2m
ZB-8,QR:FORTL.ZAHLEN
Zack marker strip - Strip - white - labeled - can be labeled with: CMS-P1-PLOTTER - Printe ...
