0709026
Phoenix ContactPanel feed-through terminal block - connection method: Screw connection with tension sleeve - Screw connection with tension sleeve - number of positions: 1 - load current: 32 A - cross section: 0.2 mm² - 6 mm² - connection direction of the conductor to plug-in direction: -90 ° - width: 8.1 mm - color: gray .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
0709026
RoHS:
Yes
HTS:
8536904000
COO:
GR
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Feed-Through Terminal Block
Mounting:
Wall Mount
Gender:
F
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
400 V
Maximum Current Rating:
32 A
Wire Size:
10-24 AWG
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced

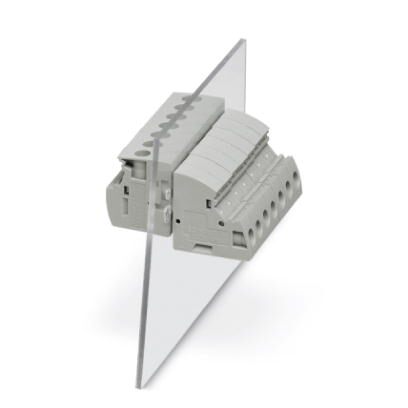

The PHOENIX CONTACT part HDFKV 4 is a panel feed-through terminal block designed for easy and secure connections. Featuring screw connections with tension sleeves and offering one position for efficient wiring, this terminal block is capable of handling a load current of 32 A. With a cross-section range of 0.2 mm² to 6 mm², it provides flexibility for various wiring needs. The conductor can be connected at a -90° angle to the plug-in direction, making installation hassle-free. This terminal block has a width of 8.1 mm and comes in a sleek gray color, ensuring a clean and professional look for your panel installations.
Search Keywords:
0709026
This product is not in stock and cannot be back-ordered
Please Note:
Tariffs may apply for U.S. shipments
