Image is representational - see mfr. specs

1411473

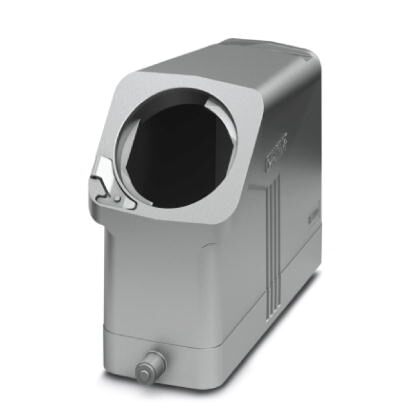

The 1411473 is a B24 size HEAVYCON EVO sleeve housing, designed as an EMC version with a bayonet flange for EVO screw connections. .. see full description

RoHS Compliant

Packaging

End of Life: Final orders must be placed by 04/30/2026

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

1411473

RoHS:

Yes

HTS:

8538908180

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Type:

Housing

Dimension:

88 mm

Operating Temperature:

-40 to 125 °C

End of Life:

Final orders must be placed by 04/30/2026

The 1411473 is a HEAVYCON EVO sleeve housing of size B24, intended for industrial connector applications. This EMC version is constructed from uncoated, salt water-resistant die-cast aluminum and features a bayonet flange for use with EVO screw connections. It offers flexible cable outlet direction, either lateral or straight, and is secured with a single locking latch. The housing provides robust environmental protection with IP66/IP67 and NEMA 4/4X/12 ratings, making it suitable for demanding conditions with an operating temperature range of -40 °C to 125 °C.
