1755503 by phoenix contact

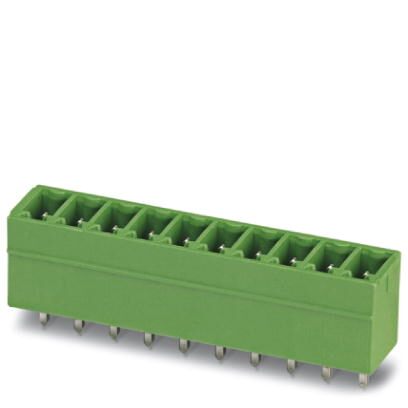

Image is representational - see mfr. specs
DATA SHEET

1755503

Phoenix Contact

PCB headers - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9 mm .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1755503
Alias/AKA:
MSTBVA-2-5/10-G
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
5 mm
Number of Contacts:
10
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Termination Method:
Solder
Operating Temperature:
N/A
The PHOENIX CONTACT part 1755503 is a set of 10 PCB headers with a green color. Designed for wave soldering, these headers have a solder pin of 3.9 mm and a pitch of 5 mm, making them easy to integrate into PCB assemblies. With a nominal current rating of 12 A and a rated voltage of 320 V, these headers are capable of handling various electronic applications. The headers feature a linear pinning layout and have a contact surface coated with tin for enhanced conductivity. With a nominal cross section of 2.5 mm², these headers provide reliable and secure connections for your electrical projects.
Search Keywords:
1755503
IN STOCK: 0
On Order:
1,471   can ship 5/11/26
Minimum Order Quantity:
10
Factory Lead-Time
10 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
10
$3.25
$32.50
50
$3.00
$150.00
300
$2.94
$882.00
500
$2.84
$1,420.00
1,000
$2.82
$2,820.00
2,500
$2.81
$7,025.00
5,000
$2.80
$14,000.00
7,500 +
$2.78
$20,850.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
