1803345 by phoenix contact

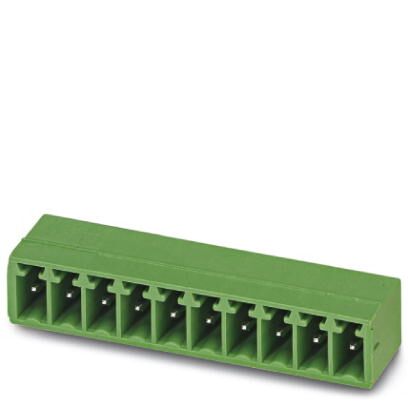

Image is representational - see mfr. specs
DATA SHEET

1803345

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 9 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803345
Alias/AKA:
MC-1-5/-9-G-3-81
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
9
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A
The PHOENIX CONTACT part 1803345 is a high-quality PCB header designed for efficient and reliable electrical connections. With a nominal current rating of 8 A and a rated voltage of 160 V, this header is suitable for various electronic applications.Featuring a nominal cross section of 1.5 mm² and 9 positions, this PCB header is designed to accommodate multiple connections. The pitch of 3.81 mm allows for easy installation and integration into electronic circuits.With its vibrant green color, the PCB header stands out visually and adds a touch of modernity to your electronic projects. The contact surface is coated with tin, ensuring excellent conductivity and reliable performance.Installation is made hassle-free with the wave soldering mounting method. The linear pinning arrangement and solder pin with a length of 3.4 mm provide a secure and stable connection.Overall, the PHOENIX CONTACT part 1803345 is a high-performing and user-friendly PCB header that is perfect for various electronic applications.
Search Keywords:
1803345
IN STOCK: 0
On Order:
200   can ship 8/14/26
Minimum Order Quantity:
5
Factory Lead-Time
30 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$4.20
$21.00
50
$3.44
$172.00
100
$3.37
$337.00
300
$3.16
$948.00
500
$3.03
$1,515.00
1,000
$2.89
$2,890.00
2,500
$2.88
$7,200.00
5,000 +
$2.86
$14,300.00
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
