2903308
Phoenix ContactThe 2903308 is a pre-assembled relay module with push-in connections, featuring a 4 PDT contact configuration and a nominal input voltage of 24 V DC. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2903308
RoHS:
Yes
HTS:
8536490050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
10
AC Coil Voltage:
N/A

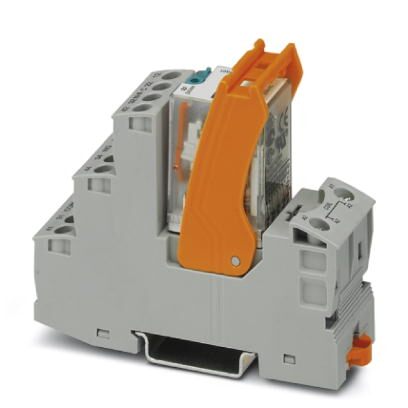

The 2903308 is a pre-assembled industrial relay module that includes a relay base, power contact relay, and retaining bracket, all featuring convenient push-in connection technology. It operates with a nominal input voltage of 24 V DC and provides a 4 PDT contact arrangement made from AgNi material. This module can switch a maximum voltage of 250 V AC/DC and handles a limiting continuous current of 6 A. Key features include a yellow LED for operating voltage display, a damping diode for circuit protection, and a mechanical switch position indicator. Designed for reliability, it operates within an ambient temperature range of -40°C to 60°C, making it suitable for a wide array of control and automation applications.
Search Keywords:
2903308
IN STOCK:
368
Ships today, if you order in
Minimum Order Quantity:
2
Factory Lead-Time
10 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
2
$14.45
$28.90
10
+
$13.67
$136.70
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Product Changes
Accessories
FBS-2-6-BU
Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: blue
FBS-2-6-GY
Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: gray
FBS-2-6
Plug-in bridge - pitch: 6.2 mm - width: 10.7 mm - number of positions: 2 - color: red
MPS-IH-GY
Insulating sleeve - color: gray
MPS-IH-BK
Insulating sleeve - color: black
MPS-MT
Test plugs - with solder connection up to 1 mm² conductor cross section - color: gray
ZB-15:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...
CLIPFIX-35
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...
MPS-IH-WH
Insulating Sleeve, MPS-IH WH Series | Phoenix Contact 0201663
MPS-IH-RD
Insulating sleeve - color: red
MPS-IH-BU
Insulating sleeve - color: blue
MPS-IH-YE
Insulating sleeve - color: yellow
MPS-IH-GN
Insulating sleeve - color: green
ZB-5-:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...
