3031212 by phoenix contact

Image is representational - see mfr. specs

3031212

Phoenix Contact

Feed-through terminal block - nom. voltage: 800 V - nominal current: 24 A - connection method: Spring-cage connection - number of connections: 2 - cross section: 0.08 mm² - 4 mm² - AWG: 28 - 12 - width: 5.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Phoenix Contact

Part No:

3031212

Alias/AKA:

ST-2-5

RoHS:

Yes

HTS:

8536904000

COO:

DE

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

50

Body Orientation:

Straight

The 3031212 is a Terminal Block Connector Type: Wire to Wire Number of Positions: 2 Position Current Rating: 24 A Voltage Rating: 800 V Wire Gauge Range: 28 AWG to 12 AWG Connection Method: Spring Cage Color: Gray Flammability Rating: UL 94 V-0 Length: 48.5 mm Width: 5.2 mm Height: 44 mm Series: ST Packaging: Bulk

Product Highlights:

Potential Applications:

Search Keywords:

3031212

IN STOCK: 880

Ships today, if you order in

BONDED Quantity:

0

Manufacturer Stock:

0

On Order:

Stock lot only:

Minimum Order Quantity:

10

MOQ for out of Stock Qty:

Multiple:

1

Factory Lead-Time

5 Weeks

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

10

$1.72

$17.20

50 +

$1.63

$81.50

Suppliers Standard Package

Please Note: Tariffs may apply for U.S. shipments

Product Guides

Product Changes

PCN - 01-Sep-2020 - IMPROVEMENT IN HOUSING STABILITY UNDER SPECIAL AMBIENT CONDITIONS

PCN - 01-Jan-2015 - INTRODUCTION OF 2D BARCODING

Insulating sleeve - color: red

Accessory Type = Test Plug / Accessory Colour = Silver / Standards Met = EAC / Poles = 1

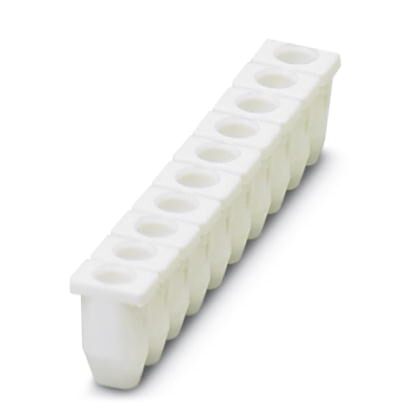

The 0808642 is an unlabeled, white, flat Zack Marker strip for marking modular terminal bl ...

Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...

DIN Rail - 35mmx7.5mm - Slotted - 2m

DIN Rail - 35mmx15mm - Unslotted - Steel 2m

Insulating sleeve - color: white

Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...

Plug-in bridge - pitch: 5.2 mm - length: 22.7 mm - width: 9 mm - number of positions: 2 - ...

Plug-in bridge - pitch: 5.2 mm - length: 22.7 mm - width: 14.2 mm - number of positions: 3 ...

End cover - length: 48.6 mm - width: 2.2 mm - height: 29.1 mm - color: gray

Partition plate - length: 59.8 mm - width: 2 mm - height: 39 mm - color: gray

Warning cover - 5-pos. - for terminal width: 5.2 mm

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch

Phoenix Contact Montagerail, geboord NS 35/ 7, 5 PERF 2000MM - 0801733

DIN Rail - 35mmx15mm - Slotted - 2m

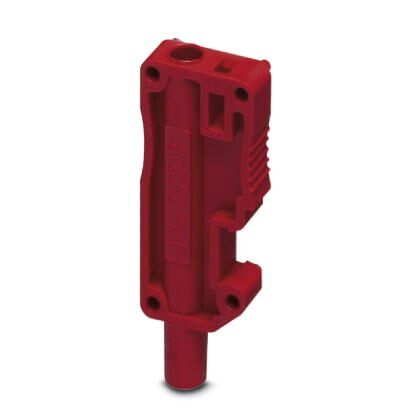

Test plugs - color: red

Reducing bridge - pitch: 7.1 mm - length: 22.7 mm - width: 10.4 mm - number of positions: ...

4 mm test adapter - for terminal blocks with 5.2 mm and 6.2 mm pitch
