3073322

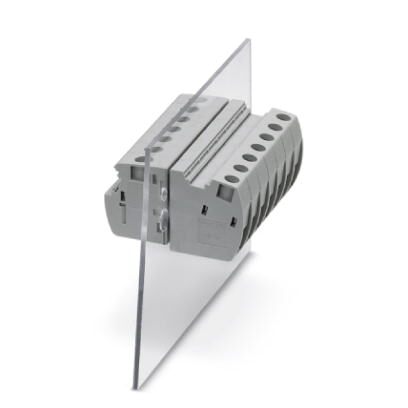

Phoenix ContactPanel feed-through terminal block - connection method: Screw connection with tension sleeve - Screw connection with tension sleeve - number of positions: 1 - load current: 57 A - cross section: 0.5 mm² - 16 mm² - connection direction of the conductor to plug-in direction: 0 ° - width: 10.1 mm - color: gray .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3073322
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Feed-Through Modular Terminal Block
Mounting:
Wall Mount
Gender:
N/A
Termination Method:
Screw
Pitch:
N/A
Number of Circuits:
2
Maximum Voltage Rating:
500 V
Maximum Current Rating:
57 A
Wire Size:
6-20 AWG
Operating Temperature:
N/A
The 0707073 is a panel feed-through terminal block designed to pass electrical connections through an enclosure. It supports a maximum load current of 76 A and a nominal current of 57 A, accommodating a conductor cross-section range from 0.5 mm² to 16 mm² (AWG 20-6). The block has a nominal voltage rating of up to 400 V and a rated surge voltage of 6 kV. Constructed from gray polyamide (PA) with a UL 94 V0 flammability rating, this single-position, 10.1 mm wide block features an M4 screw thread with a tightening torque of 1.5 Nm to 1.8 Nm. This component is ideal for creating secure and reliable pass-through connections in industrial control panels and equipment housings.
Search Keywords:
3073322
IN STOCK:
0
Minimum Order Quantity:
5
Factory Lead-Time
4 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$12.82
$64.10
25
$11.44
$286.00
50
$10.62
$531.00
100
$10.19
$1,019.00
250
$9.91
$2,477.50
500
$9.66
$4,830.00
1,000
+
$9.53
$9,530.00
