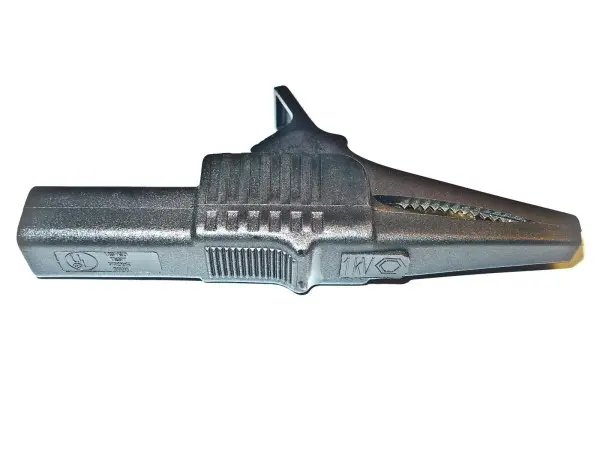

Image is representational - see manufacturer specifications

DATA SHEET

6383-0

Name: 6383-0
Brand: Pomona Electronics
SKU: 12231106
Price: 48.1 USD
Availability: InStock

Pomona Electronics

The 6383-0 is a user-installable, black shrouded 4mm banana plug designed for 18-22 AWG wire. .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

Can only ship inside the US. If exported, the warranty will be void.

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Pomona Electronics

Part No:

6383-0

Alias/AKA:

1663921

RoHS:

Yes

HTS:

8536698000

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Type:

Banana Plug

Gender:

Body Orientation:

Straight

Mounting:

Cable Mount

Number of Contacts:

Wire Size:

18-22 AWG

Maximum Current Rating:

15 A

Operating Temperature:

-29 to 135 °C

Dimension:

76.45 mm

The 6383-0 is a user-installable, black shrouded banana plug designed for creating secure connections with 4mm shrouded banana jacks. It can be attached to 18 to 22 AWG stranded wire by either crimping or soldering, accommodating insulation diameters from 0.060” to 0.150”. The plug is rated for a maximum current of 15A with 18 AWG wire and an operating voltage of 300V in handheld applications. Constructed with a nickel-plated brass and beryllium copper plug and Santoprene insulation, it operates reliably in temperatures from -29°C to 135°C. When properly assembled, it complies with IEC1010 CAT II 300V standards, making it ideal for custom test leads used with digital multimeters and other test equipment.

Product Highlights:

Potential Applications:

Search Keywords:

63830

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 297

Can Ship immediately

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

2 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

A tariff of {0} may be applied if shipping to the United States.

Quantity

Unit Price

Ext. Price

$4.81

$48.10

$4.57

$228.50

100

$4.52

$452.00

250

$4.48

$1,120.00

500

$4.47

$2,235.00

1,000

$4.46

$4,460.00

2,500

$4.44

$11,100.00

5,000 +

$4.43

$22,150.00

Supplier's Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

Datasheet
