199AX-9 by schneider electric-legacy relays

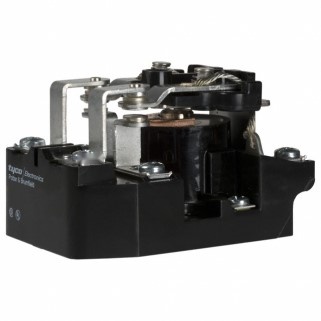

Image is representational - see manufacturer specifications
DATA SHEET

199AX-9

Schneider Electric-Legacy Relays

Power Relay - DPST-NO - open cover type - screw terminal - 40A - 120V AC - 2NO .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
199AX-9
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPST-NO
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 55 °C
Life Cycle:
Discontinued
The 199AX-9 Electromechanical Relay by Magnecraft / Schneider Electric is a high-quality power relay designed to provide reliable switching performance. This DPST-NO (Double-Pole Single-Throw Normally Open) relay operates at 120VAC and delivers a maximum current carrying capacity of 40A. Its compact size of 63.6 x 63.2 x 49.6mm allows for convenient installation in various applications. The 199AX-9 relay is engineered to offer robust performance and long-lasting durability, making it an ideal choice for demanding industrial and commercial electrical systems.
Search Keywords:
199AX9
   This product has been discontinued by the supplier
IN STOCK: 0
On Order:
500   can ship 9/14/26
80   can ship 11/2/26
This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.
Price (USD)
Quantity
Unit Price
Ext. Price
1
$93.39
$93.39
10 +
$75.38
$753.80
