788XCXRM4L-24D by schneider electric-legacy relays

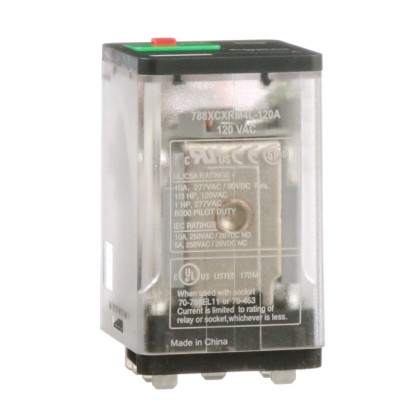

Image is representational - see mfr. specs
DATA SHEET

788XCXRM4L-24D

Schneider Electric-Legacy Relays

Plug-in electromechanical relay - General Purpose Relays - 788 R - 3PDT - LED clear cover - lock push button - blade terminal - 10A - 24V DC - 3NC + 3NO .. see full description

RoHS Compliant
Packaging
Accessories
Discontinued
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
788XCXRM4L-24D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
N/A
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
3PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
Quick Connect
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 55 °C
Coil Resistance:
470 Ohm
Life Cycle:
Discontinued
The Magnecraft / Schneider Electric part 788XCXRM4L-24D is a highly reliable and versatile electromechanical relay designed for various applications. With a coil voltage of 24VDC and a resistance of 470Ohm, this relay can handle a current of up to 10A. It features a 3PDT (3 Form C) configuration, allowing it to control multiple circuits simultaneously. The relay comes with a convenient socket for easy installation. Its compact size (35mm x 35.7mm x 59.1mm) ensures compatibility with space-constrained environments. Trust this Magnecraft / Schneider Electric relay for efficient and safe switching operations in your electrical systems.
Search Keywords:
788XCXRM4L24D
  This product is discontinued, but still in stock
IN STOCK: 32
Can Ship immediately
On Order:
100   can ship 6/3/26
Price (USD)
Quantity
Unit Price
Ext. Price
1
$64.30
$64.30
5
$45.39
$226.95
10
$42.87
$428.70
30
$40.61
$1,218.30
100
$40.41
$4,041.00
250
$40.21
$10,052.50
500 +
$40.00
$20,000.00
