W199ABX-14 by schneider electric-legacy relays

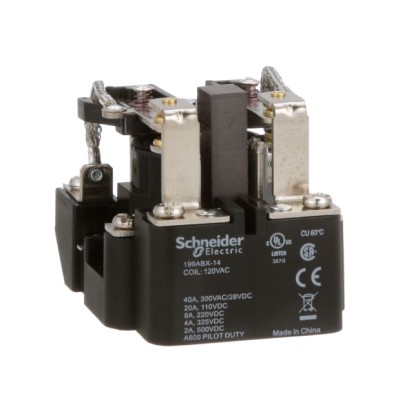

Image is representational - see mfr. specs
DATA SHEET

W199ABX-14

Schneider Electric-Legacy Relays

Electromechanical Relay 120VAC 290Ohm 40A DPDT (63.5x79.2x58.67)mm Power Relay .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199ABX-14
Alias/AKA:
199ABX-14
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
The Magnecraft / Schneider Electric W199ABX-14 Electromechanical Relay is a high-quality power relay designed for efficient and reliable electrical switching applications. With a voltage rating of 120VAC and a resistance of 290 Ohms, this DPDT (double-pole double-throw) relay can handle a maximum current of 40A. Featuring a compact size of 63.5x79.2x58.67mm, this power relay is perfect for space-constrained installations. It is built to withstand demanding environments and offers excellent durability and performance. The Magnecraft / Schneider Electric W199ABX-14 relay is an essential component for various industrial and residential applications, including motor controls, lighting systems, HVAC systems, and much more. Trust this reliable and versatile relay for all your electrical switching needs.
Search Keywords:
W199ABX14
IN STOCK: 0
On Order:
20   can ship 6/15/26
150   can ship 7/20/26
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$62.21
$62.21
5
$61.60
$308.00
10
$57.03
$570.30
30
$53.59
$1,607.70
50
$50.44
$2,522.00
100
$48.24
$4,824.00
250 +
$48.00
$12,000.00
Suppliers Standard Package
Older Equivalent
199ABX-14
199ABX-14
VIEW PRODUCT
