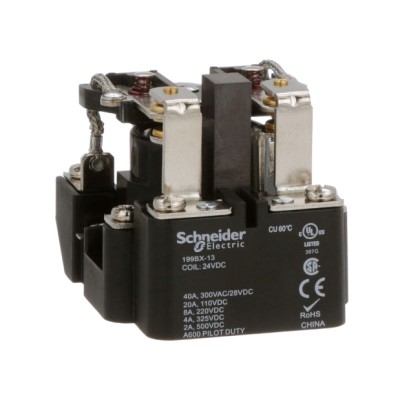

Image is representational - see mfr. specs

DATA SHEET

W199BX-13

Schneider Electric-Legacy Relays

Electromechanical Relay 24VDC 290Ohm 40A DPDT (63.5x79.2x64.26)mm Power Relay .. see full description

RoHS Compliant

Packaging

Accessories

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Schneider Electric-Legacy Relays

Part No:

W199BX-13

Alias/AKA:

199BX-13

RoHS:

Yes

HTS:

8536410050

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Relay Construction:

Non-Latching

AC Coil Voltage:

N/A

DC Coil Voltage:

24 V

Contact Arrangement:

DPDT

Maximum Current Rating:

40 A

Mounting:

N/A

Termination Style:

Screw Terminal

Push to Test Button:

Led Indicator:

Operating Temperature:

-40 to 55 °C

Life Cycle:

Discontinued & Replaced

The Magnecraft / Schneider Electric part W199BX-13 is an Electromechanical Relay designed for high-power applications. With a coil voltage of 24VDC and a resistance of 290 Ohms, this relay is capable of switching currents up to 40A. The DPDT (Double Pole Double Throw) configuration allows for versatile switching options. This Power Relay measures approximately 63.5 x 79.2 x 64.26 mm in size. Perfect for industrial and heavy-duty applications, this relay offers reliable and efficient performance.
