Image is representational - see mfr. specs

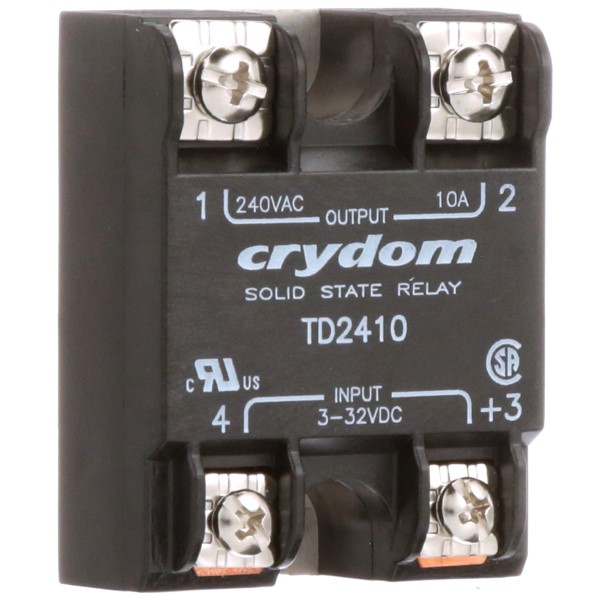

TD2410

SSR - DC Control - Control Voltage 3-32VDC/12mA - Output Voltage 24-280VAC - Max Load Current 10A - 1 Form A - Panel Mount - Screw Terminal

RoHS Compliant

EACH Packaging

Accessories

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Sensata / Crydom

Part No:

TD2410

RoHS:

Yes

HTS:

8536490080

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

EACH

Output Type:

Maximum Output Voltage:

280(RMS) V

Maximum Output Current:

10(RMS) A

Output Device:

Triac

Input Type:

Input Voltage:

32 V

Mounting:

Screw

Circuit Arrangement:

1 Form A

Dimension:

58.4 x 45.7 x 23 mm

Life Cycle:

Discontinued & Replaced

The TD2410 is a SSR T Series with triac output and redesigned housing with anti-rotation barriers. Zero voltage (resistive loads) output. Operating temperature range: -40 to +80°C. Isolation voltage is 4000Vrms.

Product Highlights:

Potential Applications:

Search Keywords:

TD2410

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product is not in stock and cannot be back-ordered

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 4

Ships today, if you order in

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$196.09

$164.97

$494.91

$155.11

$775.55

$146.38

$1,463.80

40 +

$122.27

$4,890.80

Click for Quote

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

RECOMMENDED REPLACEMENT

D2410

VIEW PRODUCT

Product Guides

Datasheet

Selecting a SSR

Why use an SSR

SSR Information
