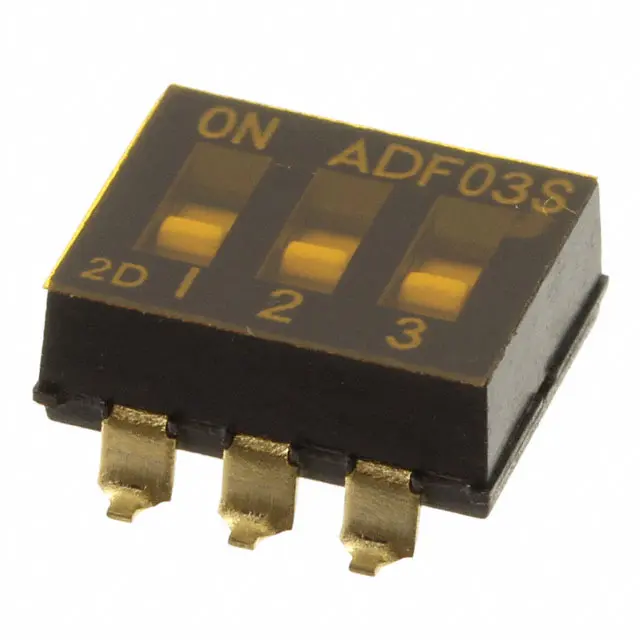

ADF03STTR04

TE Connectivity / Alcoswitch Brand

Dip Switch - SPST - 3 Position - 25mA - 24VDC - Slide (Standard) Actuator - Flush, Recessed Actuator Level - Gull Wing Termination - Surface Mount. .. see full description

RoHS Compliant
REEL Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Alcoswitch Brand
Part No:
ADF03STTR04
Alias/AKA:
1-1825059-2
RoHS:
Yes
HTS:
8536509065
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
750
Package Type:
REEL
Body Orientation:
Straight
Actuator Style:
Flush Slide
Actuator Length:
0 mm
Number of Positions:
3
Pole Throw Configuration:
SPST
Mounting:
Surface Mount
Terminal Type:
Gull Wing
Contact Rating @ Voltage:
0.1@24VDC A
Contact Plating:
Gold Flash/Nickel
Terminal Pitch:
2.54 mm
The ADF03STTR04 from TE Connectivity / Alcoswitch Brand is surface mount single pole single throw (SPST) dip switch with 3 positions and gull wing termination. This dip switch has slide (standard) actuator, flush (recessed) actuator level and tape seal. The ADF03STTR04 is dip switch with 25mA current rating and 24VDC voltage rating. Operating temperature range is from -30°C to 85°C.
Product Highlights:
  • Switch - Mechanical
  • Switch Type = DIP
  • PCB Mount Style = Surface Mount
  • Single Pole - Single Throw Configuration (Pole-Throw)
  • Actuator Style = Flush, Slide
