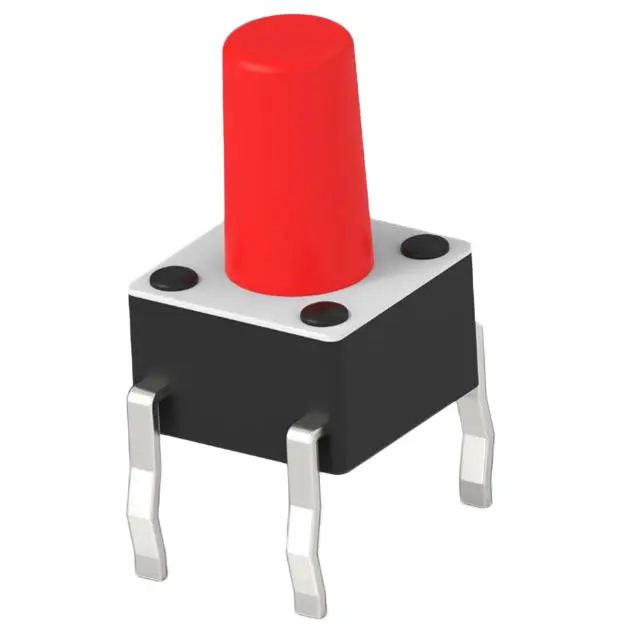

FSM8JAH by te connectivity / alcoswitch brand
Image is representational - see manufacturer specifications
DATA SHEET

FSM8JAH

TE Connectivity / Alcoswitch Brand

Tactile Switch - SPST-NO - Off-Mom - 0.05A @ 24VDC - 9.50mm Actuator Height - Top Actuated - 260gf Operating Force - PC Pin - Through Hole. .. see full description

RoHS Compliant
BAG Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Alcoswitch Brand
Part No:
FSM8JAH
Alias/AKA:
1-1825910-5
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier's Standard Package The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
750
Package Type:
BAG
Dimension:
5.99 x 7.8 x 9.5 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
Off (On)
Actuator Style:
Round Button
Operating Force:
2.55 N
Contact Rating @ Voltage:
0.05@24VDC A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal:
No
Seal Location:
N/R
The FSM8JAH from TE Connectivity / Alcoswitch Brand is through hole mounting, single pole single throw (SPST) tactile switch with NO contact configuration, Off-Mom switch function and PC pin termination. This top actuated switch has 9.50mm actuator height and 260gf operating force. Outline dimensions of this switch are: 6.00mm x 6.00mm. The FSM8JAH tactile switch has brass contacts with silver plating and 0.05A @ 24VDC contact rating. Operating temperature range is from -40°C to 105°C.
Product Highlights:
  • Switch - Mechanical
  • Tactile
  • Single Pole - Single Throw Configuration (Pole-Throw)
  • Contact Rating = 50mA
  • Operating Function = Off [On]
Search Keywords:
FSM8JAH
IN STOCK: 19,500
Can Ship immediately
Minimum Order Quantity:
750
Multiple:
750
Factory Lead-Time
17 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
750
$0.0967
$72.5250
3,000
$0.0826
$247.8000
5,250
$0.0818
$429.4500
7,500
$0.0780
$585.0000
25,500
$0.0737
$1,879.3500
50,250
$0.0678
$3,406.9500
100,500
$0.0663
$6,663.1500
150,000 +
$0.0661
$9,915.0000
