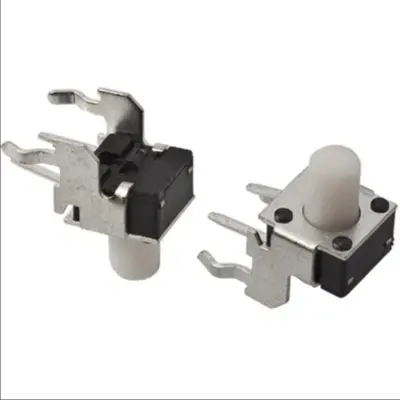

FSMRA6JH04 by te connectivity / alcoswitch brand
Image is representational - see mfr. specs
DATA SHEET

FSMRA6JH04

TE Connectivity / Alcoswitch Brand

Tactile Switch - SPST-NO - Off-Mom - 0.05A @ 24VDC - 6.85mm Actuator Height - Side Actuated - 160gf Operating - PC Pin - Right Angle, Through Hole. .. see full description

RoHS Compliant
Bag Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Alcoswitch Brand
Part No:
FSMRA6JH04
Alias/AKA:
1-1825027-7
RoHS:
Yes
HTS:
8536509031
COO:
KR
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Bag
Dimension:
7.11 x 10.86 x 7.01 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
Off (On)
Actuator Style:
Round Button
Operating Force:
1.57 N
Contact Rating @ Voltage:
0.05@24VDC A
Illumination Type:
N/A
Body Orientation:
Right Angle
Termination Style:
PC Pins
Seal Location:
N/A
The FSMRA6JH04 from TE Connectivity / Alcoswitch Brand is right angle, through hole mounting, single pole single throw (SPST) tactile switch with NO contact configuration, Off-Mom switch function and PC pin termination. This side actuated switch has 6.85mm actuator height and 160gf operating force. Outline dimensions of this switch are: 7.11mm x 6.60mm. The FSMRA6JH04 tactile switch has copper alloy contacts with silver plating and 0.05A @ 24VDC contact rating. Operating temperature range is from -20°C to 105°C.
Search Keywords:
FSMRA6JH04
IN STOCK: 17,991
Can Ship immediately
Minimum Order Quantity:
1000
Multiple:
1000
Factory Lead-Time
15 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1,000
$0.1104
$110.4000
3,000
$0.1094
$328.2000
5,000
$0.1083
$541.5000
8,000
$0.1078
$862.4000
25,000
$0.1072
$2,680.0000
50,000
$0.1067
$5,335.0000
100,000
$0.1062
$10,620.0000
150,000 +
$0.1056
$15,840.0000
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
