1375820-3 by te connectivity / amp brand

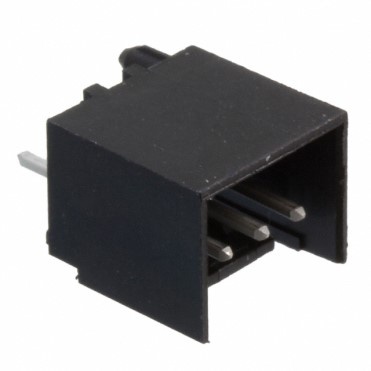

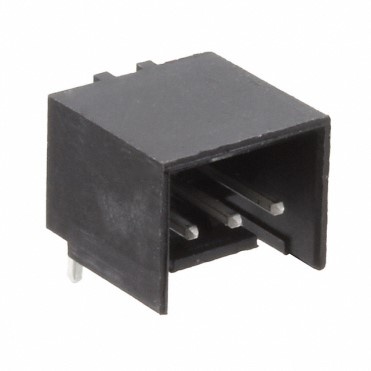

Image is representational - see manufacturer specifications
DATA SHEET

1375820-3

TE Connectivity / AMP Brand

CST-100 II HOUSING 3 POS .. see full description

RoHS Compliant
BAG Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1375820-3
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
3
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
4/Contact A
Operating Temperature:
-55 to 105 °C
1375820-3 is a 3-position CST-100 II connector housing designed for wire-to-board interconnect applications. The housing is manufactured from UL 94V-0 rated nylon in white color and features a 2.54 mm (0.100 inch) centerline spacing with dimension A of 0.320 inches (8.13 mm). It is rated for 250 VAC voltage and 4 amp maximum current, with an operating temperature range of -55°C to +105°C. The connector offers low-level resistance of 6 mO maximum initial and 10 mO maximum final, along with insulation resistance of 1000 MO minimum initial and 100 MO minimum final. This housing is commonly used in printed circuit board applications where reliable wire-to-board connections are required.
Product Highlights:
  • CST-100 II Housings
  • Number of Positions = 3
  • Mating Type = Receptacle
  • Wire-to-Board Application
  • 2.54 mm Contact Centerline Spacing
Search Keywords:
13758203
IN STOCK: 28,308
Can Ship immediately
Minimum Order Quantity:
250
Factory Lead-Time
13 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
250
$0.1020
$25.5000
2,500
$0.0946
$236.5000
5,000
$0.0924
$462.0000
7,500
$0.0911
$683.2500
25,000
$0.0812
$2,030.0000
50,000
$0.0753
$3,765.0000
100,000
$0.0733
$7,330.0000
150,000 +
$0.0722
$10,830.0000
Older Equivalent
770602-3
770602-3
