5-102523-1 by te connectivity / amp brand

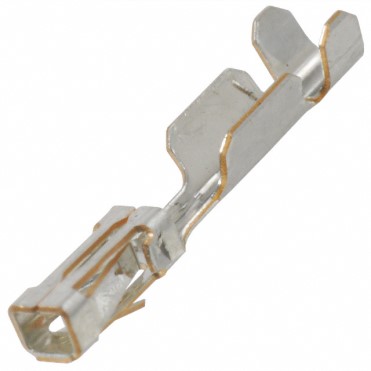

Image is representational - see manufacturer specifications
DATA SHEET

5-102523-1

TE Connectivity / AMP Brand

04 MODII HDR SRRA SHRD .100CL .. see full description

RoHS Compliant
TUBE Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5-102523-1
RoHS:
Yes
HTS:
8536694040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Package Type:
TUBE
Type:
Shrouded Header
Body Orientation:
Right Angle
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
4
Maximum Voltage Rating:
N/A
Maximum Current Rating:
3/Contact A
Termination Method:
Solder
Operating Temperature:
-55 to 105 °C
5-102523-1 is a single-row right-angle (SR RA) header from the AMPMODU .025 [0.64] Square Interconnection System, designed for reliable PCB-to-PCB or wire-to-board connections. This 3-position header features a 0.100" (2.54 mm) centerline pitch with 0.025" (0.64 mm) square posts and Plating C configuration consisting of tin over nickel plating. The header has overall dimensions of A = 0.420" (10.67 mm), B = 0.340" (8.64 mm), and C = 0.200" (5.08 mm). It is designed for use with 0.055" (1.40 mm) minimum thick PC boards and mates with AMPMODU wire-applied receptacles and MTE receptacles. This RoHS-compliant component is suitable for general-purpose interconnection applications requiring compact, right-angle mounting configurations.
Product Highlights:
  • Header
  • Header Type = Shrouded
  • Number of Rows = Single
  • Number of Positions = 4
  • Mating Post Length = 6.10 mm
Search Keywords:
51025231
IN STOCK: 5,738
Ships today, if you order in
Minimum Order Quantity:
40
Multiple:
40
Factory Lead-Time
20 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
40
$1.83
$73.20
120
$1.72
$206.40
280
$1.64
$459.20
520
$1.57
$816.40
1,000
$1.51
$1,510.00
2,520
$1.42
$3,578.40
5,000
$1.29
$6,450.00
7,520 +
$1.25
$9,400.00
Supplier's Standard Package
