Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
87922-1
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack
100
Package Type:
Bag
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
10
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
3/Contact A
Operating Temperature:
-65 to 105 °C
87922-1 is a double-row wire-applied housing designed for the AMPMODU Mod IV interconnection system. It features a .100 x .100 inch [2.54 x 2.54 mm] centerline spacing and is constructed from black thermoplastic material with a 94V-0 flame retardant rating. The housing is designed to accept a variety of receptacle and pin contacts with detent latching features for secure connections. This component is part of a comprehensive wire-to-board interconnection system that supports housing sizes ranging up to 100 positions, making it suitable for various electronic applications requiring reliable signal connections.
Product Highlights:
- Housing
- Housing Type = Housing - Receptacle
- Accepts Contact Type = Receptacle
- 2.54 mm Centerline
- Row-to-Row Spacing = 2.54 mm
Search Keywords:
879221
IN STOCK:
1,417
Can Ship immediately
Minimum Order Quantity:
10
Factory Lead-Time
52 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
10
$4.83
$48.30
50
$4.19
$209.50
100
$3.73
$373.00
300
$3.54
$1,062.00
500
$3.53
$1,765.00
1,000
$3.40
$3,400.00
2,500
$3.19
$7,975.00
5,000
+
$3.18
$15,900.00
Product Guides
Product Changes
CUSTOMERS
ALSO BOUGHT
AFPX-BATT
Back Up Coin Battery for FP-X
AZ2800-2A-240A
30AMP Power Relay 240VAC coil DPST
095-5710-09-301
The 095-5710-09-301 is a panel mount indicator base for a T-3 1/4 mini bayonet incandescen...
FUSE-11A/1000V-B1
Fuse - Cartridge - Time Delay - 11 A - 1 kV.

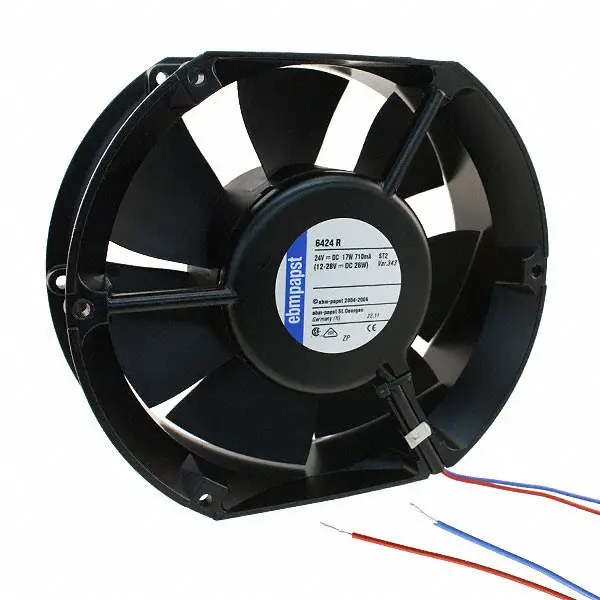

6424R-343
