969028-5 by te connectivity / amp brand

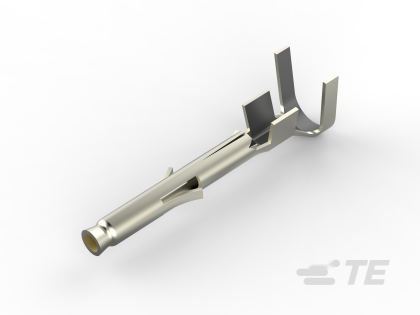

Image is representational - see mfr. specs
DATA SHEET

969028-5

TE Connectivity / AMP Brand

TAB A 1.6x0.6 CONTACT CS SWS Ag .. see full description

RoHS Compliant
Tray Packaging

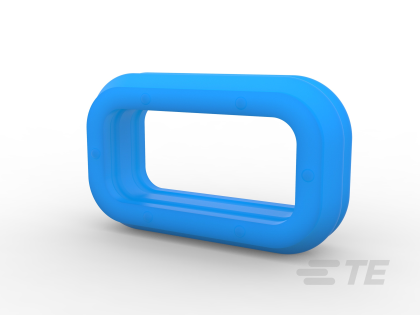

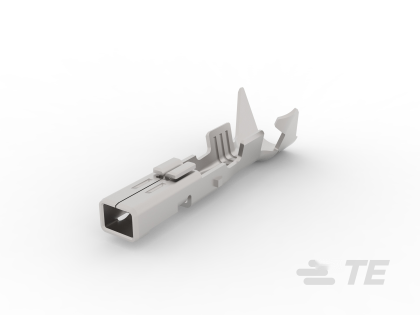

Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
969028-5
RoHS:
Yes
HTS:
8536904000
COO:
CZ
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
4000
Package Type:
Tray
Primary Locking Feature:
Locking Lance
Packaging Quantity:
4000
Crimp Type:
F-Crimp
Typical Current Rating:
10 A
Sealable:
Yes
Agency/Standard:
DIN 72 551 Part 5 and 6
Terminal Transmits:
0 – 24 A (Low Power)
Interface Plating:
Silver (Ag)
Packaging Method:
Package
Terminal Type:
Tab
Receptacle Style:
180°
Termination Method to Wire & Cable:
Crimp
Wire Size:
24 – 20 AWG, .2 – .5 mm²
Mating Tab Width:
.063 in, 1.6 mm
Mating Tab Thickness:
.024 in, .6 mm
Wire Size Search:
20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, .2 mm², .25 mm², .3 mm², .4 mm², .5 mm²
Operating Temperature Range:
-40 – 130 °C, -40 – 266 °F
Tab Length:
.88 in, 22.4 mm
Wire Contact Termination Area Plating Material:
Tin
Operating Temperature (Max):
130 °C, 266 °F
Contact Size:
1.6mm
Contact Fabrication:
Stamped & Formed
969028-5 is an AMP MCP 1.5K tab contact designed for use in HDSCS connector systems. This stamped and formed tab contact is supplied in strip form and accommodates wire sizes from 0.2 to 0.5 mm² with insulation diameters of 1.15 to 1.6 mm. The contact features CuSn4 (copper-tin alloy) material with select gold plating for reliable electrical connections. It is part of TE Connectivity's HDSCS connector series, which is engineered to protect sensitive electrical systems from vibration, moisture, dust, dirt, salt, and airborne particles in harsh industrial and commercial transportation environments. Compatible hand tool part number 539635-1 with die set 539663-2 is recommended for proper crimping.
Search Keywords:
9690285
IN STOCK: 6,100
Can Ship immediately
Minimum Order Quantity:
100
Factory Lead-Time
18 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
100
$0.4809
$48.0900
500
$0.3066
$153.3000
1,000
$0.3005
$300.5000
4,000
$0.2946
$1,178.4000
8,000
$0.2939
$2,351.2000
12,000
$0.2898
$3,477.6000
16,000
$0.2878
$4,604.8000
28,000 +
$0.2852
$7,985.6000
Suppliers Standard Package
