HFW1201K45M by te connectivity / cii brand

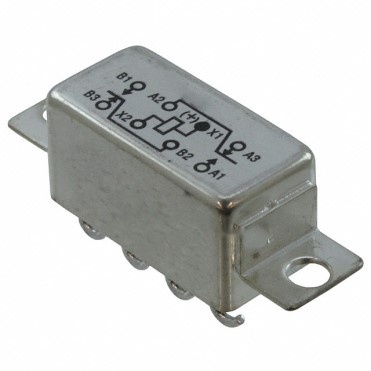

Image is representational - see manufacturer specifications
DATA SHEET

HFW1201K45M

TE Connectivity / CII Brand

Electromechanical Relay 26.5VDC 700Ohm 2A DPDT (20.57x10.41x10.41)mm THT Half Size High Performance Relay .. see full description

RoHS Non-Compliant
BAG Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / CII Brand
Part No:
HFW1201K45M
Alias/AKA:
M39016/6-109M, 2-1617031-1
RoHS:
No
HTS:
8536490050
COO:
IN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Type:
Half Size High Performance Relay
Relay Construction:
Non-Latching
Contact Arrangement:
DPDT
AC Coil Voltage:
N/A
DC Coil Voltage:
26.5 V
Maximum Current Rating:
2 A
Coil Current:
37.86 mA
Coil Resistance:
700 Ohm
Mounting:
Through Hole
Operating Temperature:
-65 to 125 °C
Termination Style:
PC Pin
The TE Connectivity / CII Brand part HFW1201K45M is a versatile electromechanical relay with a compact design and high performance capabilities. This relay operates at a voltage of 26.5VDC and has a resistance of 700 Ohm. With a switching capacity of 2A, this relay is perfect for various electrical applications. The DPDT (Double-Pole Double-Throw) configuration allows for versatile switching options. The relay has a compact size of 20.57x10.41x10.41mm, making it suitable for applications with limited space. It is designed for through-hole mounting (THT) and offers reliable performance in a wide range of industrial and commercial settings. The TE Connectivity / CII Brand HFW1201K45M relay is an excellent choice for applications that require high-performance and compact design.
Product Highlights:
  • HFW Half-Size Relay Series
  • Input Voltage = 26.5 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 2 Amps.
  • Non Polarized, Monostable Coil Magnetic System
Search Keywords:
HFW1201K45M
IN STOCK: 0
On Order:
314   can ship 10/14/26
500   can ship 10/28/26
Factory Lead-Time
30 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$55.73
$55.73
5
$54.27
$271.35
10
$53.14
$531.40
20
$52.54
$1,050.80
50
$52.41
$2,620.50
100 +
$52.27
$5,227.00
