38941-22L by te connectivity / deutsch
Image is representational - see mfr. specs
DATA SHEET

38941-22L

TE Connectivity / Deutsch

Pin Contact Crimp 22-28 AWG Machined .. see full description

RoHS Compliant
Bag Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
38941-22L
RoHS:
Yes
HTS:
8536904000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25000
Package Type:
Bag
Contact Type:
Stamped Signal
Gender:
Pin
Contact Size:
22D
Wire Size:
22-28 AWG
Contact Material:
N/A
Contact Plating:
N/A
Maximum Current Rating:
N/A
Termination Method:
Crimp
This PIN contact is a crimp type which is removable from the connectors after installation using the proper installation removal tool. Compliant with SAE M39029 and QPL listed. Suited for harsh enviroments the contact is designed for 500 mating cycles and is constructed of a Copper Alloy which is Class B rated from temperature range -65C to +200C. Specifications Pin contact size 22 Gold Plated Wire barrel size 22D BIN code Orange/Blue/Black Features Meets MIL-C-24308, MIL-C-38999 Series I, II, III, IV; MIL-C-55302/69, MIL-C-83733 Mating Contact M39029/56, 57
Search Keywords:
3894122L
  Possible Replacement options available.  See Alternatives
IN STOCK: 0
Minimum Order Quantity:
250
Factory Lead-Time
12 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
100
$0.3267
$32.6700
500
$0.2436
$121.8000
2,500
$0.2289
$572.2500
5,000
$0.2239
$1,119.5000
7,500
$0.2228
$1,671.0000
25,000
$0.2216
$5,540.0000
50,000 +
$0.2205
$11,025.0000
Please Note: Tariffs may apply for U.S. shipments
Possible Replacement

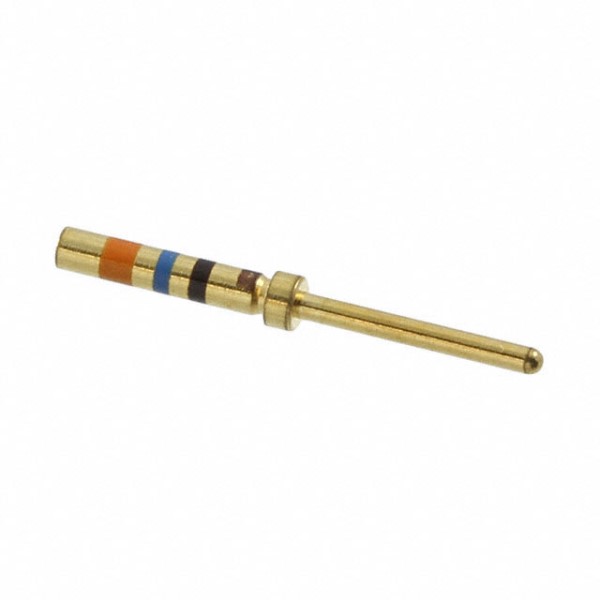

M39029/58-360
M39029/58-360
VIEW PRODUCT
