44A0111-22-8-MX
TE Connectivity / Raychem BrandThe 44A0111-22-8-MX is a 22 AWG single-conductor hook-up wire rated for 600 VAC and designed for general-purpose, lightweight applications. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
44A0111-22-8-MX
Alias/AKA:
282038-000
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack
1
Package Type:
BAG
Size:
22 AWG
Bunch Stranding:
19x34
Conductor Material:
Tin Plated Copper
Insulation Material:
Radiation-Crosslinked, Extruded Polyalkene
Cable Diameter:
1.24 mm
Maximum Voltage Rating:
600 VAC
Operating Temperature:
-65 to 150 °C
Color:
Gray

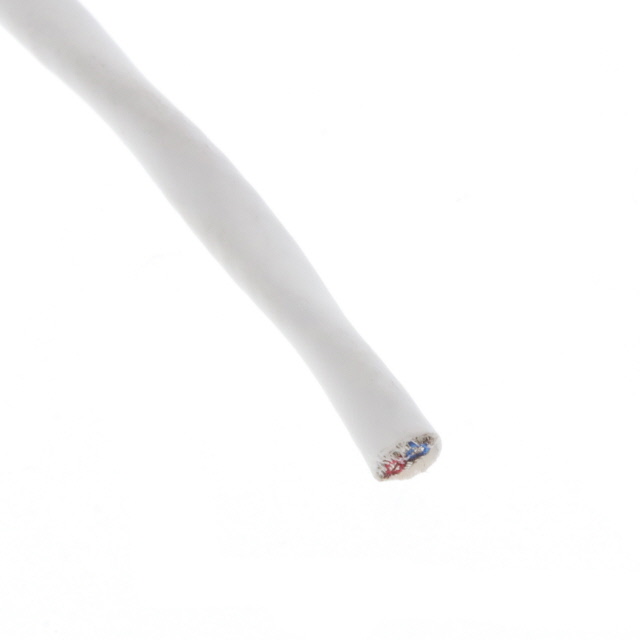

The 44A0111-22-8-MX is a Spec 44 primary hook-up wire intended for general-purpose, lightweight electrical use. This single-conductor wire is constructed with a 22 AWG tin-coated copper conductor, composed of 19 strands of 34 AWG wire. It features a voltage rating of 600 VAC and a wide operating temperature range of -65°C to +150°C. With a nominal outside diameter of 1.19 mm, this gray wire is ideal for internal equipment wiring where performance and minimal weight are required.
Search Keywords:
44A0111228MX
IN STOCK:
10,000
Can Ship immediately
MOQ for In Stock Qty:
50
MOQ for out of Stock Qty:
1250
Price Per:
Foot
Factory Lead-Time
50 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
50
$0.8941
$44.7050
250
$0.8918
$222.9500
500
$0.8896
$444.8000
1,250
$0.8874
$1,109.2500
2,500
$0.5461
$1,365.2500
3,750
$0.4323
$1,621.1250
5,000
+
$0.4237
$2,118.5000
