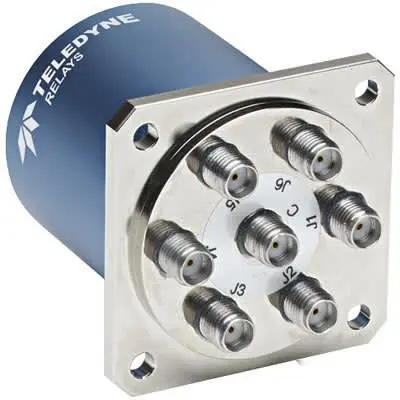

CCS-18N140

Name: CCS-18N140
Brand: Teledyne Coax
SKU: 44527078
Price: 1444.1 USD
Availability: InStock

Teledyne Coax

RF Switch Commercial - 50 Ohms - 28VDC Coil - DC-12GHz - Normally-Open - SP4T - N-Female .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

Teledyne Coax

Part No:

CCS-18N140

RoHS:

Yes

HTS:

8536410020

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Impedance (Ohms):

Switch Configuration:

1P4T (SP4T)

Connector:

N Female

Actuator Feature:

Normally Open

Typical Operating Supply Voltage:

28 VDC

Actuation Current (mA - Typ):

270

Insertion Loss - Max Frequency (dB):

0.4 (Typ)

Isolation - Max Frequency (dB):

75 (Typ)

Insertion Loss - Min Frequency (dB):

0.2 (Typ)

Isolation - Min Frequency (dB):

80 (Typ)

Indicator Contacts:

Self-Cutoff:

Not App

Coil Transient Suppression Diodes:

TTL Drivers:

Decoders:

D-Sub Connector:

Moisture Seal:

Not App

Narrow Body:

Not App

Positve Common:

Not App

Operating Temperature:

-40 to 65 °C

The TELEDYNE COAX CCS-18N140 is a high-quality RF switch designed for commercial applications. With a 50 Ohm impedance and a coil voltage of 28VDC, this switch offers reliable performance in a wide range of environments. Operating within the frequency range of DC-12GHz, it provides excellent signal integrity and low insertion loss. This SP4T switch has a Normally-Open configuration, allowing for the efficient control of RF signals. Equipped with an N-Female connector, it ensures easy integration with various RF systems. Whether used in telecommunications, broadcasting, or other commercial RF applications, the TELEDYNE COAX CCS-18N140 delivers superior functionality and durability.
