RC863

Name: RC863
Brand: Thomas Betts
SKU: 12673871
Price: 28.7 USD
Availability: InStock

Thomas & Betts

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #12-#10AWG - Material Copper - Tin-Plated Finish - Color Yellow - Bolt Hole #8 .. see full description

RoHS Compliant

Packaging

Accessories

Certificate of Compliance Guarantee

Product Attribute

Attribute Value Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RC863

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

500

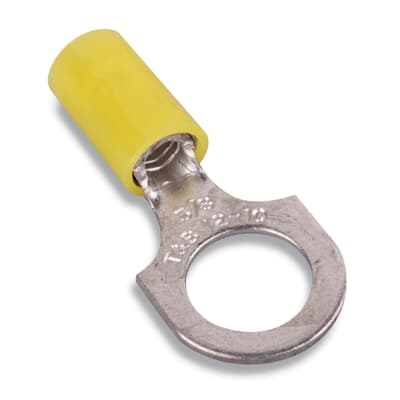

The RC863 is a ring terminal insulated with high dielectric-strength nylon for wire range #12 - #10 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length 1.00 inches, .37 inches width, maximum insulation .210 inches, bolt hole #8. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG4001.
