26PCCFA6G by honeywell
图片仅供参考 - 请查看制造商规格
产品说明书

26PCCFA6G

Honeywell

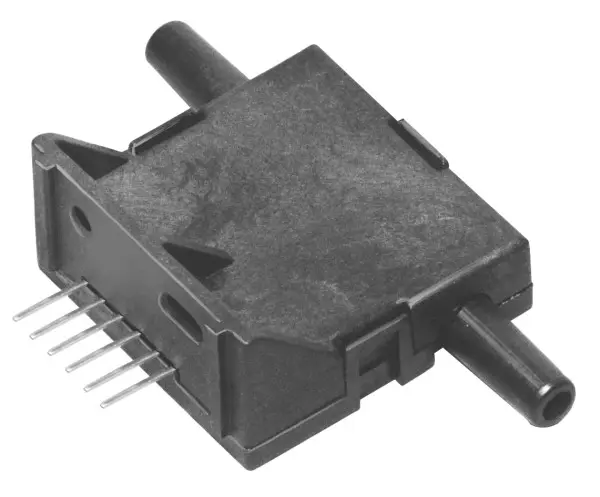

Honeywell Miniature Low Pressure Sensors: 26PC Series, Compensated/Unamplified, 15 psi Pressure Range, Fluorosilicone Seal, Straight Port, 1 x 4 SIP, 15,2 mm [0.60 in] Termination, Normal Polarity Output, Gage Pressure Measurement Type .. 查看完整描述

符合 RoHS
包装
附件
附件
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. 合规证书保证
产品属性
属性值 选择属性
找到的产品: 0
供应商:
Honeywell
部件编号:
26PCCFA6G
RoHS:
Yes
HTS:
90262000
COO:
CN
ECCN:
EAR99
供应商标准包装 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
25
安装方式:
PCB Through Hole 90 °
精度:
±0.5 %
器件压力类型:
Gage
工作压力范围:
0 to 15 psi
介质:
Air,Gas,Liquid
输出电压:
0 to 100 mV
响应时间:
1 mS
典型工作电源电压:
10 V
工作温度:
-40 to 85 °C
尺寸:
12.7 x 7.9 x 21.8 mm
<p>Pressure sensors, also known as pressure indicators, are instruments that are used to measure the pressure of gases and liquids. They can also be used indirectly to measure the flow of fluids and gases, speed, water level and altitude, as well as other variables. These instruments are generally used in dental chairs, water control valves, instrumentation, irrigation equipment, and robotics, among others.</p><p>26PCCFA6G Pressure Sensor from Honeywell is a miniature-type low pressure sensor. This Honeywell 26PCCFA6G sensor comes with a wide range of gage pressure port configurations. It enables the user to change the configuration easily and quickly for special application needs. Utilizing a specialized piezoresistive micro-machined sensing element, this High Pressure Sensor allows part interchangeability, as well as design flexibility.</p>
产品亮点:
  • Temperature compensated
  • Provides interchangeability
  • Choice of termination for gage sensors
  • Lowest priced sensor with temperature compensation and calibration
  • Variety of gage pressure port configurations - easily and quickly modified for your special needs
  • Operable after exposure to frozen conditions
  • Calibrated null and span
  • Can be used to measure vacuum or positive pressure
搜索关键词:
26PCCFA6G
有存货: 0
工厂交货期
12 周
价格 (USD)
数量
单价
总价
1
$107.57
$107.57
5
$104.43
$522.15
10
$103.39
$1,033.90
25
$102.37
$2,559.25
50
$102.11
$5,105.50
100 +
$101.11
$10,111.00
点击询价
