DTF2-2RN-RH
HoneywellSwitch Limit N.O./N.C. DPDT Top Plunger Conduit 0.3A 250VDC 11.2N Linear Screw Mount .. 查看完整描述
产品属性
属性值
选择属性
找到的产品: 0
供应商:
Honeywell
部件编号:
DTF2-2RN-RH
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
供应商标准包装
1
类型:
Enclosed
致动器样式:
Top Plunger
极-位配置:
DPDT
开关配置:
N.O./N.C.
操作力:
11.2 N
尺寸:
101.6 x 33.02 x 83.08 mm
最大电流额定值:
0.3@125VDC A
端子类型:
Conduit
NEMA外壳防护标准等级:
1, 3, 4, 13
本体方向:
Straight
<p>Limit Switches are generally used to control machinery in industrial applications. They act as a safety interlock and can be used to establish or disrupt electrical connections. This Honeywell Limit Switch is used in packaging equipment, special machinery and agricultural machinery. The medium-duty limit switch is also used in conveyors and overhead cranes and hoists.</p><p>DTF2-2RN-RH Limit Switch from Honeywell has cast aluminum housing with three-hole mounting. It comes with grounding screw, cover seal and captive cover screws.</p>
产品亮点:
- UL recognized, file #E12252
- CSA certified, file #LR41372
- Sealed to NEMA 1, 3, 4 and 13 requirements
- Grounding screw
- Up to 20 ampere capacity
- Cast aluminum housing with three-hole mounting
- Cover seal, captive cover screws
潜在应用:
<ul><li>Packaging equipment </li><li>Special machinery</li><li>Agricultural machinery </li><li>Conveyors</li><li>Overhead cranes and hoists</li></ul>搜索关键词:
DTF22RNRH
有存货:
0
已订购:
25
可以发货 12/14/26
工厂交货期
18 周
价格 (USD)
数量
单价
总价
1
$430.44
$430.44
3
$412.93
$1,238.79
5
+
$410.38
$2,051.90
点击询价
产品指南
客户
还购买了
DTF2-2RN-LH
Switch Limit N.O./N.C. DPDT Top Plunger Conduit 0.3A 250VDC 11.2N Linear Screw Mount
E13-00M
Snap Action Switch - SPDT - Button w/ferrule - 15A@125/250VAC 2A@48VDC - Quick Connect - S...
1TL1-8
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw (SPDT) 2 Position (Mom....
BZ-2RQ181-A2
MICRO SWITCH™ Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A at 125 Vac,...

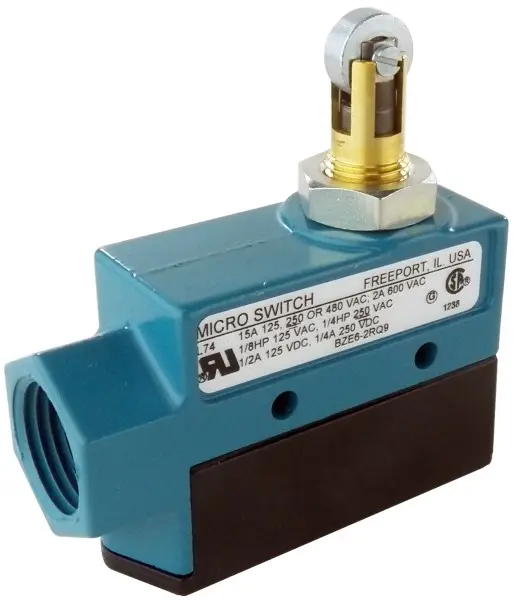

BZE6-2RQ9
