1414103

Phoenix Contact

The 1414103 is a mini feed-through terminal block with screw connections, designed for installing individually selected components. .. see full description

符合 RoHS 规定
包装
附件
Discontinued & Replaced
附件
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
供应商:
Phoenix Contact
部件编号:
1414103
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
供应商标准包装 This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Contact Material:
N/A
Contact Plating:
N/A
Gender:
F
Family:
1414103
Housing Material:
Polyamide
Housing Color:
Gray
Maximum Current Rating:
24 A
Body Orientation:
N/A
Dimension:
62mm x 5.2mm x 55.5 mm
Life Cycle:
Discontinued & Replaced
The 1414103 is a double-level, mini feed-through terminal block designed for installing individually selected components. It features a screw connection method and supports a wire cross-section range of 0.2 mm² to 4 mm² (AWG 24-12). This gray terminal block is rated for a nominal current of 24 A and a nominal voltage of 500 V. With a compact width of just 5.2 mm, it is designed for space-saving assembly on NS 15, NS 35/7,5, and NS 35/15 DIN rails. Its design allows for clear arrangement and easy potential distribution, making it suitable for various control cabinet and switching applications where custom component integration is required.
Search Keywords:
1414103
  This product is not in stock and cannot be back-ordered
Minimum Order Quantity:
4
This product is no longer being manufactured but there may be alternatives. We can help you, 连系我们.

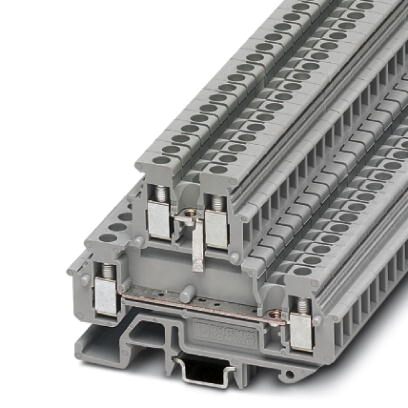

Older Equivalent
MBKKB-2-5-BE
MBKKB-2-5-BE
VIEW PRODUCT
