84028651 by sensata / crydom
Image is representational - see mfr. specs
产品说明书

84028651

Sensata / Crydom

SOLID STATE RELAY 48-530 V - PM IP00 3P-SSR 530VAC/50A,3-32VDC,RN .. see full description

符合 RoHS 规定
包装
附件
Discontinued & Replaced
附件
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
供应商:
Sensata / Crydom
部件编号:
84028651
RoHS:
Yes
HTS:
8536490080
供应商标准包装 This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Type:
AC
Maximum Output Voltage:
530(RMS) V
Maximum Output Current:
50(RMS) A
Output Device:
SCR
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
103.9 x 79.7 x 35.4 mm
Life Cycle:
Discontinued & Replaced
84028651 is a three-phase solid-state relay from the Crydom 53TP Series designed for heavy industrial load switching applications. It features SCR output with ratings of 25A or 50A per phase at 48-530 VAC operating voltage, built-in transient protection up to 1200 Vpk, and supports both zero-crossing and random-fire output modes. The relay offers a dielectric strength of 4000 Vrms between input/output/base, operates within an ambient temperature range of -40 to 80°C, and weighs approximately 10.3 oz (315g). With AC or DC control options, LED input status indicator, and UL Recognized/CE Compliant certifications, this relay is ideal for industrial automation, motor control, and power switching applications requiring reliable three-phase operation.
Search Keywords:
84028651
  This product is not in stock and cannot be back-ordered
建议的换货

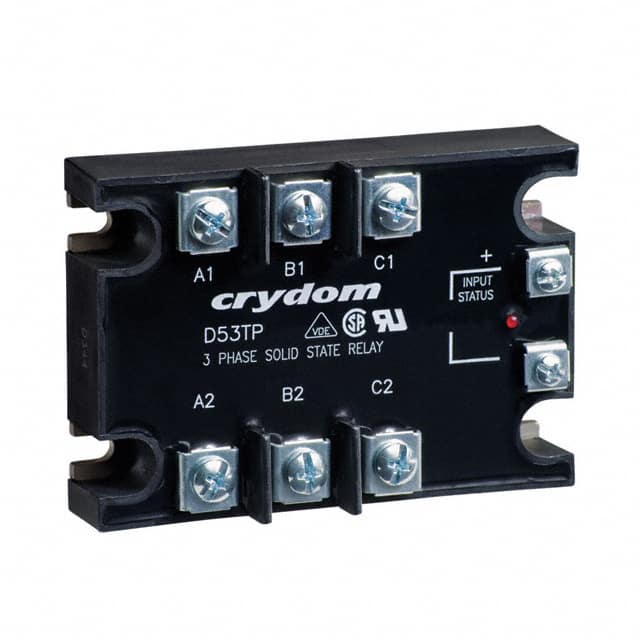

D53TP50D-10
D53TP50D-10
